M3DDK-2406R

Active

3M (TC)

IDC CABLE - MKR24K/MC24M/MKR24K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3302 Series Datasheet +1

M3DDK-2406R

Active

3M (TC)

IDC CABLE - MKR24K/MC24M/MKR24K

Deep-Dive with AI

Documents3302 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3DDK-2406R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	24
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3DDK Series

Part	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Length	Length	Length	Contact Finish	Number of Rows	Features	Shielding	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Length	Length [x]	Length [x]
3M (TC) M3DDK-2406R	0.05 "	1.27 mm	IDC	Socket to Socket	152.4 mm	6 "	0.5 '	Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Ribbon	24	0.76 Ám	30 Áin	0.1 in	2.54 mm
3M (TC) M3DDK-3460K	0.05 "	1.27 mm	IDC	Socket to Socket	1.52 m			Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	34	0.76 Ám	30 Áin	0.1 in	2.54 mm	5 '
3M (TC) M3DDK-5018J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		50	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
3M (TC) M3DDK-4018J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		40	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
3M (TC) M3DDK-6020K	0.05 "	1.27 mm	IDC	Socket to Socket	508 mm			Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	60	0.76 Ám	30 Áin	0.1 in	2.54 mm	1.67 ft
3M (TC) M3DDK-1436J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		14	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-2040K	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	20	0.76 Ám	30 Áin	0.1 in	2.54 mm		1.02 m	3.34 ft
3M (TC) M3DDK-2036J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		20	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-3436J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		34	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-2018R	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Ribbon	20	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.31
		10	$ 13.32
		25	$ 12.05
		50	$ 11.19
		100	$ 10.41
		250	$ 9.49
		500	$ 8.87
		1000	$ 8.31

Description

General part information

M3DDK Series

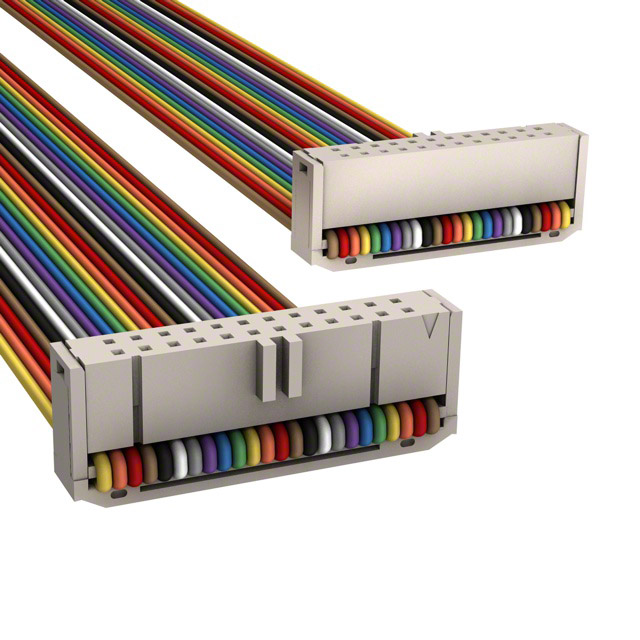

24 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
