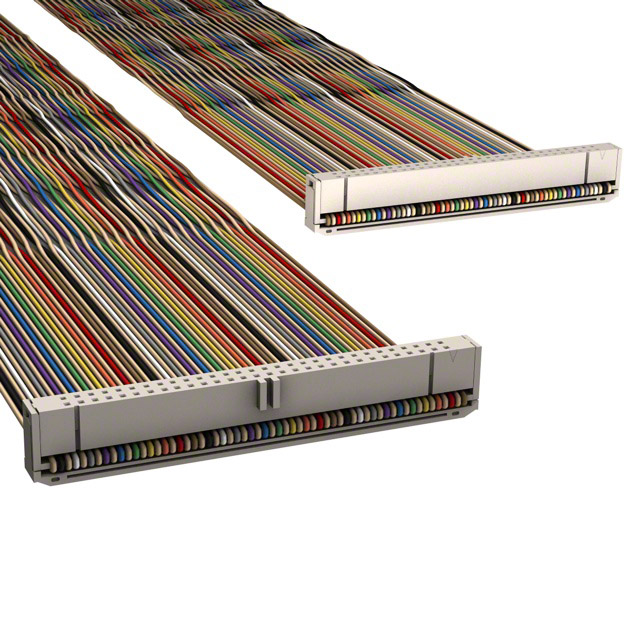

M3DDK-6020K

Active

3M (TC)

IDC CABLE - MKR60K/MC60F/MKR60K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M3DDK-6020K

Active

3M (TC)

IDC CABLE - MKR60K/MC60F/MKR60K

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3DDK-6020K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	508 mm
Length	1.67 ft
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3DDK Series

Part	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Length	Length	Length	Contact Finish	Number of Rows	Features	Shielding	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Length	Length [x]	Length [x]
3M (TC) M3DDK-2406R	0.05 "	1.27 mm	IDC	Socket to Socket	152.4 mm	6 "	0.5 '	Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Ribbon	24	0.76 Ám	30 Áin	0.1 in	2.54 mm
3M (TC) M3DDK-3460K	0.05 "	1.27 mm	IDC	Socket to Socket	1.52 m			Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	34	0.76 Ám	30 Áin	0.1 in	2.54 mm	5 '
3M (TC) M3DDK-5018J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		50	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
3M (TC) M3DDK-4018J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		40	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
3M (TC) M3DDK-6020K	0.05 "	1.27 mm	IDC	Socket to Socket	508 mm			Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	60	0.76 Ám	30 Áin	0.1 in	2.54 mm	1.67 ft
3M (TC) M3DDK-1436J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		14	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-2040K	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Twisted Pair (Flat)	20	0.76 Ám	30 Áin	0.1 in	2.54 mm		1.02 m	3.34 ft
3M (TC) M3DDK-2036J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		20	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-3436J	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded		34	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
3M (TC) M3DDK-2018R	0.05 "	1.27 mm	IDC	Socket to Socket				Gold	2	Polarizing Key Strain Relief	Unshielded	Multiple Ribbon	20	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.46
		10	$ 33.62
		25	$ 30.49
		50	$ 28.39
		100	$ 26.48
		250	$ 24.23

Description

General part information

M3DDK Series

60 Position Cable Assembly Rectangular Socket to Socket 1.67' (508.00mm)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
