19628241271

Active

HARTING Technology Group

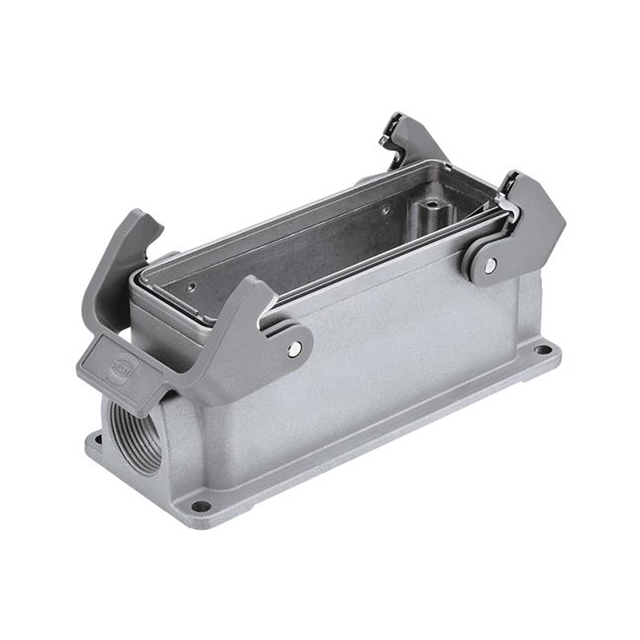

HAN EMC/B 24 BASE PANEL ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN EMC/B 24 BASE PANEL ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	19628241271

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	144 mm
Size / Dimension [x]	5.669 "
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	57 mm
Size / Dimension [z]	2.244 "
Style	Side Entry
Thread Size	M25

Part	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Style	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Connector Type	Features
HARTING Technology Group 19628241521	EMC Coating	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Aluminum Die Cast	24 B	Side Entry	IP65 - Dust Tight Water Resistant	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	M25	Hood
HARTING Technology Group 19628241271		Locking Clip (2) on Base Bottom	125 °C	-40 °C	Aluminum Die Cast	24 B	Side Entry	IP65 - Dust Tight Water Resistant	144 mm	2.244 "	5.669 "	2.244 "	57 mm	57 mm	M25	Base - Box Mount	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 24B IP65 - Dust Tight, Water Resistant
