19628241521

Active

HARTING Technology Group

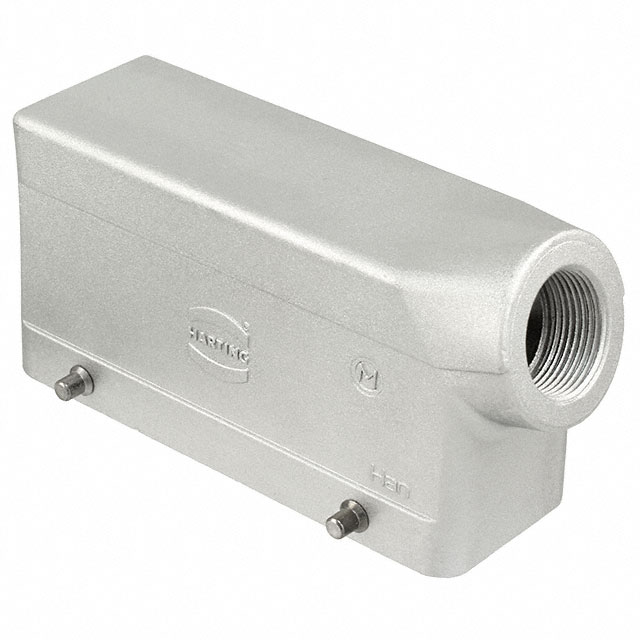

24B EMC HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HARTING Technology Group

24B EMC HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	19628241521

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.461 in
Size / Dimension [z]	62.5 mm
Style	Side Entry
Thread Size	M25

Part	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Style	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Connector Type	Features
HARTING Technology Group 19628241521	EMC Coating	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Aluminum Die Cast	24 B	Side Entry	IP65 - Dust Tight Water Resistant	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	M25	Hood
HARTING Technology Group 19628241271		Locking Clip (2) on Base Bottom	125 °C	-40 °C	Aluminum Die Cast	24 B	Side Entry	IP65 - Dust Tight Water Resistant	144 mm	2.244 "	5.669 "	2.244 "	57 mm	57 mm	M25	Base - Box Mount	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 24B IP65 - Dust Tight, Water Resistant
