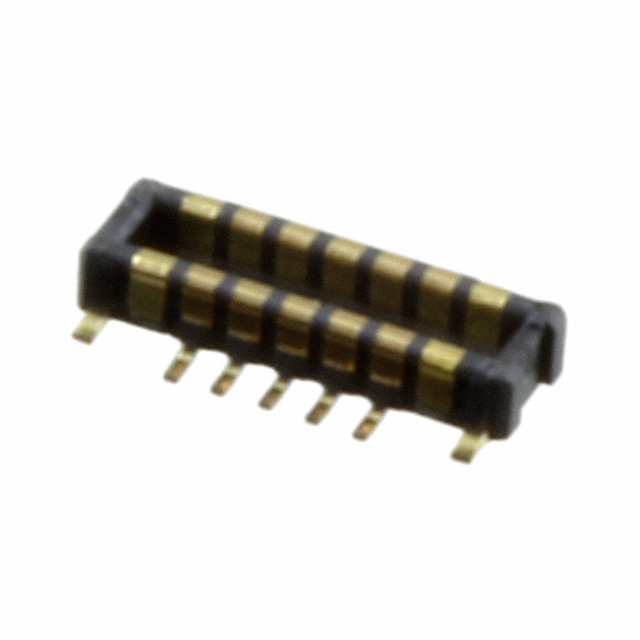

WP25D-P010VA1-R8000
JAE Electronics
CONN PLUG 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP25D-P010VA1-R8000
JAE Electronics
CONN PLUG 10POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP25D-P010VA1-R8000 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.57 mm |
| Height Above Board | 0.022 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
