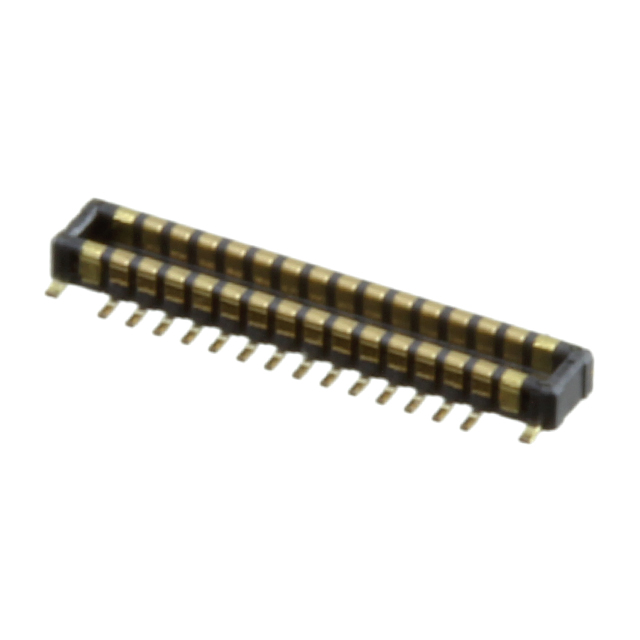

WP25D-P028VA1-R8000
JAE Electronics
CONN PLUG 28POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP25D-P028VA1-R8000
JAE Electronics
CONN PLUG 28POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP25D-P028VA1-R8000 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.57 mm |
| Height Above Board | 0.022 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.68 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| 2500 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.79 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.68 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| 2500 | $ 1.07 | |||
| Tape & Reel (TR) | 8000 | $ 0.99 | ||
Description
General part information
WP25D-P0 Series
28 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
