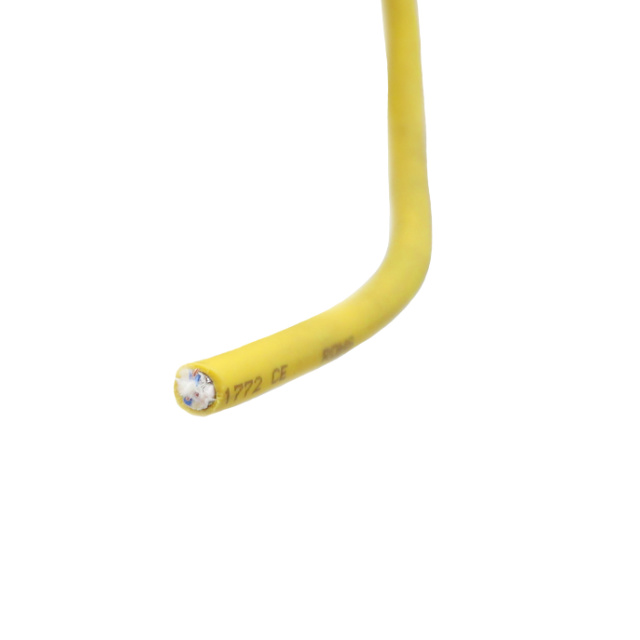

1772 YL005

Active

ALPHA WIRE

CABLE 4COND 25AWG YLW SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 25AWG YLW SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1772 YL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	40
Conductor Strand [x]	40
Jacket (Insulation) Diameter [diameter]	0.239 in
Jacket (Insulation) Diameter [diameter]	6.07 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.118 mm
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Yellow
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	25 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Material	Length	Length	Shield Type	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [x]	Wire Gauge	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Length [x]	Length [x]
ALPHA WIRE 1772 BR001	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare	1000 ft	304.8 m	Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Brown	Multi-Conductor	4	1.118 mm	0.044 in	95 %
ALPHA WIRE 1772 SL005	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare			Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Slate	Multi-Conductor	4	1.118 mm	0.044 in	95 %	30.5 m	100 ft
ALPHA WIRE 1772 BK001	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare	1000 ft	304.8 m	Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Black	Multi-Conductor	4	1.118 mm	0.044 in	95 %
ALPHA WIRE 1772 YL005	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare			Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Yellow	Multi-Conductor	4	1.118 mm	0.044 in	95 %	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Yellow 25 AWG Braid 100.0' (30.5m)
