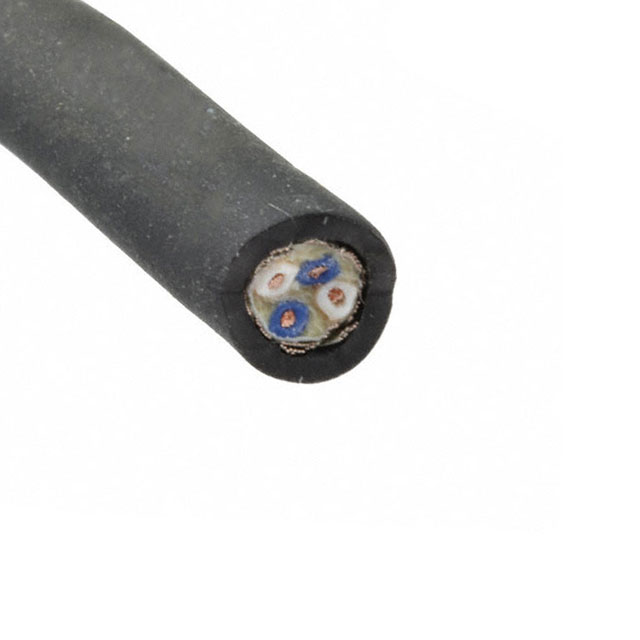

1772 BK001

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, COMMUNICATION & CONTROL, SHIELDED, 4 CONDUCTOR, 25 AWG, 1000 FT, 305 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, COMMUNICATION & CONTROL, SHIELDED, 4 CONDUCTOR, 25 AWG, 1000 FT, 305 M

Technical Specifications

Parameters and characteristics for this part

Specification	1772 BK001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	40
Conductor Strand [x]	40
Jacket (Insulation) Diameter [diameter]	0.239 in
Jacket (Insulation) Diameter [diameter]	6.07 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.118 mm
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	25 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Material	Length	Length	Shield Type	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [x]	Wire Gauge	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Length [x]	Length [x]
ALPHA WIRE 1772 BR001	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare	1000 ft	304.8 m	Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Brown	Multi-Conductor	4	1.118 mm	0.044 in	95 %
ALPHA WIRE 1772 SL005	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare			Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Slate	Multi-Conductor	4	1.118 mm	0.044 in	95 %	30.5 m	100 ft
ALPHA WIRE 1772 BK001	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare	1000 ft	304.8 m	Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Black	Multi-Conductor	4	1.118 mm	0.044 in	95 %
ALPHA WIRE 1772 YL005	Poly-Vinyl Chloride (PVC)	0.239 in	6.07 mm	Communication Control	Copper Bare			Braid	Poly-Vinyl Chloride (PVC)	Copper Tinned	40	40	25 AWG	600 V	-20 C	60 °C	Yellow	Multi-Conductor	4	1.118 mm	0.044 in	95 %	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 6434.97
Newark	Spool of 1000	1	$ 6746.25

General part information

4 Conductor Multi-Conductor Cable Black 25 AWG Braid 1000.0' (304.8m)
