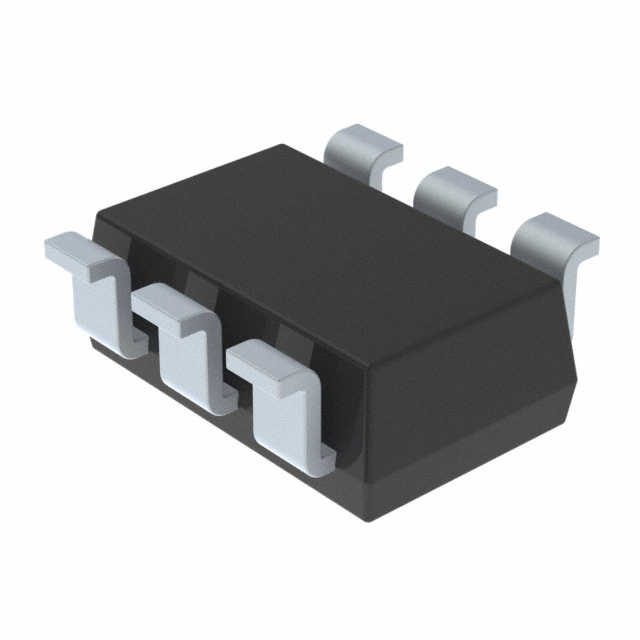

ZXTD6717E6QTA
ActiveCOMPLEMENTARY, 15V, 1.5A, SOT26
Deep-Dive with AI
Search across all available documentation for this part.
ZXTD6717E6QTA
ActiveCOMPLEMENTARY, 15V, 1.5A, SOT26
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXTD6717E6QTA |
|---|---|
| Current - Collector (Ic) (Max) | 1.5 A, 1.25 A |
| Current - Collector Cutoff (Max) [Max] | 10 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 300 |
| Frequency - Transition | 220 MHz, 180 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-23-6 |
| Power - Max [Max] | 1.1 W |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOT-26 |
| Transistor Type | 1 NPN, 1 PNP |
| Vce Saturation (Max) @ Ib, Ic | 245 mV |
| Vce Saturation (Max) @ Ib, Ic | 240 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 15 V |
| Voltage - Collector Emitter Breakdown (Max) [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.35 | |
| 6000 | $ 0.33 | |||
| 9000 | $ 0.30 | |||
| 30000 | $ 0.30 | |||
Description
General part information
ZXTD6717E6Q Series
This new combination device comprises a complementary NPN and PNP low saturation transistor housed in the SOT23-6 package. Users benefit from very efficient performance combining a high current operation, exceptionally low VCE(SAT)and high HFEresulting in extremely low on state losses. This dual transistor is ideal for use in a variety of efficient driving functions including motors, lamps, relays and solenoids and will also benefit circuits requiring high output current switching.
