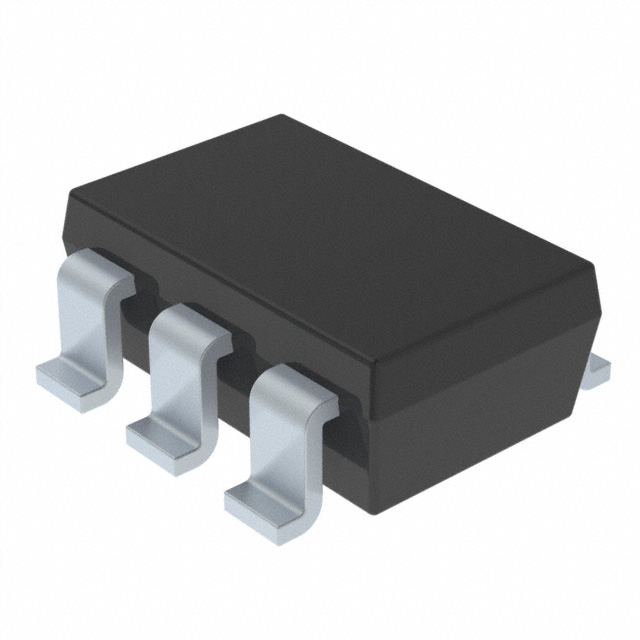

ZXTD6717E6TC

Obsolete

Diodes Inc

TRANS NPN/PNP 15V/12V SOT23-6

Deep-Dive with AI

Search across all available documentation for this part.

ZXTD6717E6TC

Obsolete

Diodes Inc

TRANS NPN/PNP 15V/12V SOT23-6

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTD6717E6TC

Current - Collector (Ic) (Max)	1.5 A, 1.25 A
Current - Collector Cutoff (Max) [Max]	10 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	250 hFE, 200 hFE
Frequency - Transition	220 MHz, 180 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-6
Power - Max [Max]	1.1 W
Supplier Device Package	SOT-26
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	245 mV
Vce Saturation (Max) @ Ib, Ic	240 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	15 V
Voltage - Collector Emitter Breakdown (Max) [Min]	12 V

ZXTD6717E6Q Series

Complementary, 15V, 1.5A, SOT26

Part	Mounting Type	Current - Collector (Ic) (Max)	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Grade	Qualification
Diodes Inc ZXTD6717E6TC	Surface Mount	1.25 A 1.5 A	SOT-26	245 mV	240 mV	10 nA	1 NPN 1 PNP	SOT-23-6	12 V	15 V	1.1 W	-55 °C	150 °C	180 MHz 220 MHz	200 hFE 250 hFE
Diodes Inc ZXTD6717E6TA	Surface Mount	1.25 A 1.5 A	SOT-26	245 mV	240 mV	10 nA	1 NPN 1 PNP	SOT-23-6	12 V	15 V	1.1 W	-55 °C	150 °C	180 MHz 220 MHz	200 hFE 250 hFE
Diodes Inc ZXTD6717E6QTA	Surface Mount	1.25 A 1.5 A	SOT-26	245 mV	240 mV	10 nA	1 NPN 1 PNP	SOT-23-6	12 V	15 V	1.1 W	-55 °C	150 °C	180 MHz 220 MHz		300	Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZXTD6717E6Q Series

This new combination device comprises a complementary NPN and PNP low saturation transistor housed in the SOT23-6 package. Users benefit from very efficient performance combining a high current operation, exceptionally low VCE(SAT)and high HFEresulting in extremely low on state losses. This dual transistor is ideal for use in a variety of efficient driving functions including motors, lamps, relays and solenoids and will also benefit circuits requiring high output current switching.
