B0520LW RHG
ActiveTaiwan Semiconductor Corporation
SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 20 V, 500 MA, 385 MV, 5.5 A, 125 °C
Deep-Dive with AI
Search across all available documentation for this part.
B0520LW RHG
ActiveTaiwan Semiconductor Corporation
SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 20 V, 500 MA, 385 MV, 5.5 A, 125 °C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B0520LW RHG |
|---|---|
| Capacitance @ Vr, F | 170 pF |
| Current - Average Rectified (Io) | 500 mA |
| Current - Reverse Leakage @ Vr | 250 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |

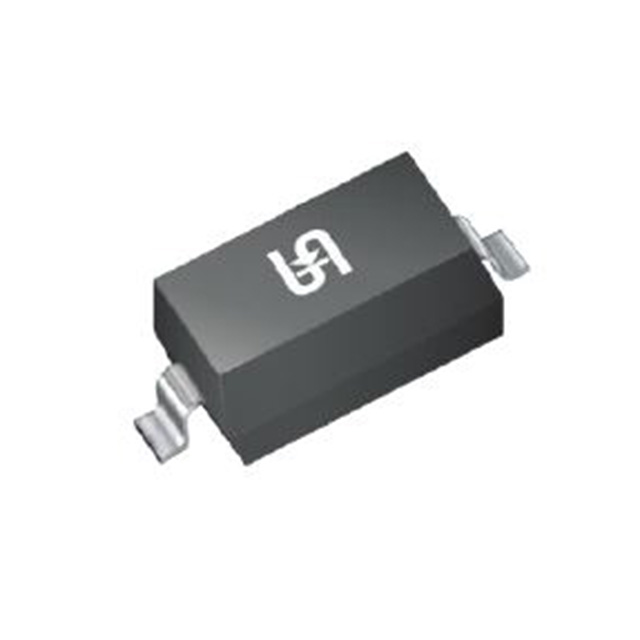

| Package / Case | SOD-123 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 385 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.17 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.26 | ||
| 10 | $ 0.17 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.07 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.06 | |||
| 21000 | $ 0.06 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.05 | |||
| 150000 | $ 0.05 | |||
Description
General part information
B0520 Series
The B0520LW is a low VF SMD Schottky Barrier Diode with lead-free matte tin-plated terminals, plastic case and indicated by cathode band polarity. Low power loss, high current capability and low forward voltage. Solderable terminals as per MIL-STD-202, method 208 standard.
