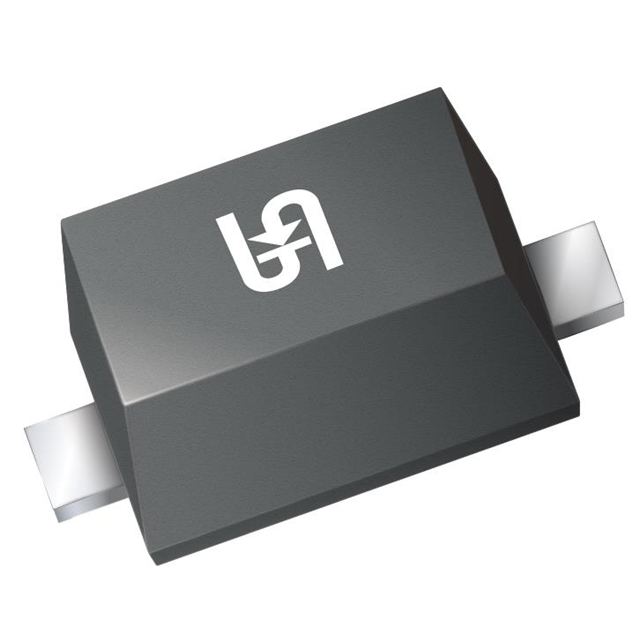

B0520LWF RHG

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 20V 500MA SOD123F

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 20V 500MA SOD123F

Technical Specifications

Parameters and characteristics for this part

Specification	B0520LWF RHG

Current - Average Rectified (Io)	500 mA
Current - Reverse Leakage @ Vr	250 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-123F
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If [Max]	385 mV

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Current - Average Rectified (Io)	Package / Case	Mounting Type	Capacitance @ Vr, F
Taiwan Semiconductor Corporation B0520LWF RHG	125 °C	-65 C	250 µA	200 mA 500 ns	20 V	SOD-123F	385 mV	Schottky	500 mA	SOD-123F	Surface Mount
Taiwan Semiconductor Corporation B0520LW RHG	125 °C	-55 °C	250 µA	200 mA 500 ns	20 V	SOD-123	385 mV	Schottky	500 mA	SOD-123	Surface Mount	170 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 20 V 500mA Surface Mount SOD-123F
