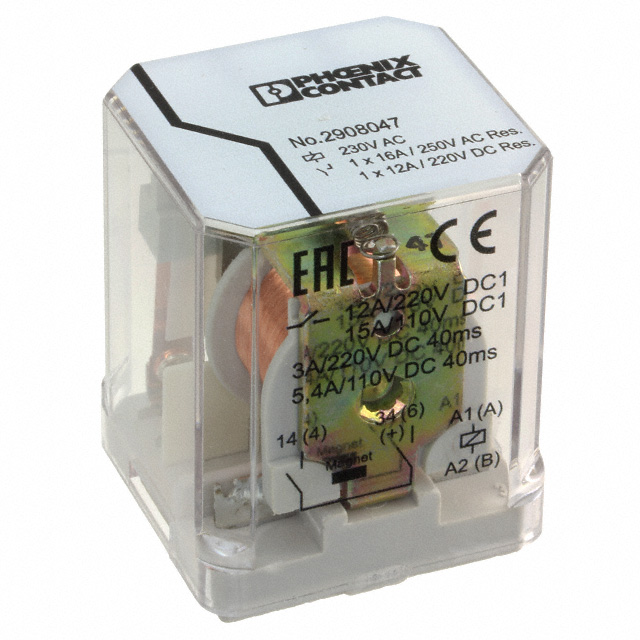

2908047

Active

Phoenix Contact

RELAY: INDUSTRIAL; SPST-NO; UCOIL: 230VAC; 16A/440VAC; 16A/250VDC

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY: INDUSTRIAL; SPST-NO; UCOIL: 230VAC; 16A/440VAC; 16A/250VDC

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Operate Time	Coil Resistance	Coil Type	Coil Current	Release Time	Features	Coil Voltage	Relay Type	Contact Form	Approval Agency	Load - Max Switching	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Switching Voltage	Termination Style
Phoenix Contact 2908044	16 A	20 ms	7.3 kOhms	Non Latching	15 mA	15 ms	Magnetic Blowout	110 VDC	General Purpose	SPST-NO (1 Form A)	EAC EX	5600 W 7040 VA	Socketable	-40 °C	70 °C	Silver Nickel (AgNi)	350 VDC 440 VAC	Plug In
Phoenix Contact 2908047	16 A	25 ms	19.17 kOhms	Non Latching	12 mA	18 ms	Magnetic Blowout	230 VAC	General Purpose	SPST-NO (1 Form A)	EAC EX	5600 W 7040 VA	Socketable	-40 °C	70 °C	Silver Nickel (AgNi)	350 VDC 440 VAC	Plug In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 230VAC Coil Socketable
