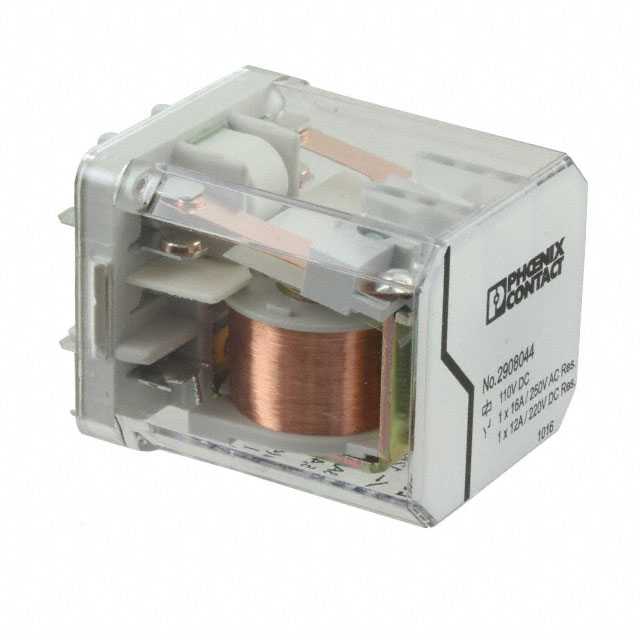

2908044
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 16A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2908044
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 16A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2908044 |
|---|---|
| Approval Agency | EAC, EX |
| Coil Current | 15 mA |
| Coil Resistance | 7.3 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Features | Magnetic Blowout |
| Load - Max Switching | 5600 W, 7040 VA |
| Mounting Type | Socketable |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 440 VAC, 350 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.15 | |
| 10 | $ 13.94 | |||
| 50 | $ 12.88 | |||
| 100 | $ 12.27 | |||
| 250 | $ 11.51 | |||
| 500 | $ 10.54 | |||
Description
General part information
29080 Series
General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Socketable
