3-109-088

Active

SCHURTER Inc.

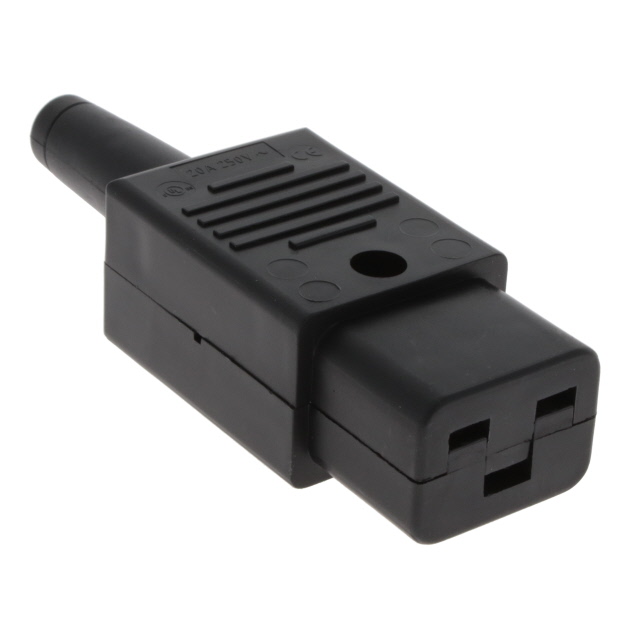

PWR ENT PLUG IEC320-C19 STR SCRW

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT PLUG IEC320-C19 STR SCRW

Technical Specifications

Parameters and characteristics for this part

Specification	3-109-088

Accomodates a Fuse	False
Approval Agency	ENEC 10, cULus
Connector Style	IEC 320-C19
Connector Type	Female Sockets, Plug
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Panel Cutout Dimensions [x]	31.8 mm
Panel Cutout Dimensions [y]	25.5 mm
Termination	Screw

Part	Mounting Type	Current Rating (Amps)	Features	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Type	Circuit	Actuator Type	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color	Mechanical Life	Electrical Life	Ingress Protection	Connector Style	Approval Agency	Material Flammability Rating	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Termination
SCHURTER Inc. 3-109-012
SCHURTER Inc. 3-109-664	Panel Mount Front	125 mA	Tactile Feedback	48 V	19 mm	2.1 VDC	Solder Lug	Off-Mom	-25 °C	60 °C	Anti-Vandal Illuminated	SPST-NO	Button Flush Round	Black	No Marking	Green LED	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant
SCHURTER Inc. 3-109-008
SCHURTER Inc. 3-109-088	Free Hanging (In-Line)																			IEC 320-C19	cULus ENEC 10	UL94 V-0	Female Sockets Plug	25.5 mm	31.8 mm	Unfiltered - Commercial	Screw
SCHURTER Inc. 3-109-087	Free Hanging (In-Line)																			IEC 320-C19	cULus ENEC 10	UL94 V-0	Female Sockets Plug	25.5 mm	31.8 mm	Unfiltered - Commercial	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Plug, Female Sockets IEC 320-C19 Free Hanging (In-Line)
