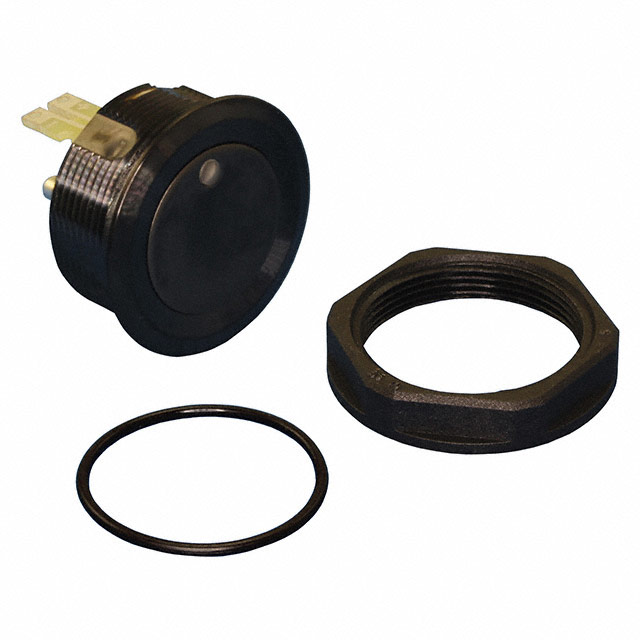

3-109-664

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Technical Specifications

Parameters and characteristics for this part

Specification	3-109-664

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Mounting Type	Current Rating (Amps)	Features	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Type	Circuit	Actuator Type	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color	Mechanical Life	Electrical Life	Ingress Protection	Connector Style	Approval Agency	Material Flammability Rating	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Termination
SCHURTER Inc. 3-109-012
SCHURTER Inc. 3-109-664	Panel Mount Front	125 mA	Tactile Feedback	48 V	19 mm	2.1 VDC	Solder Lug	Off-Mom	-25 °C	60 °C	Anti-Vandal Illuminated	SPST-NO	Button Flush Round	Black	No Marking	Green LED	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant
SCHURTER Inc. 3-109-008
SCHURTER Inc. 3-109-088	Free Hanging (In-Line)																			IEC 320-C19	cULus ENEC 10	UL94 V-0	Female Sockets Plug	25.5 mm	31.8 mm	Unfiltered - Commercial	Screw
SCHURTER Inc. 3-109-087	Free Hanging (In-Line)																			IEC 320-C19	cULus ENEC 10	UL94 V-0	Female Sockets Plug	25.5 mm	31.8 mm	Unfiltered - Commercial	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
