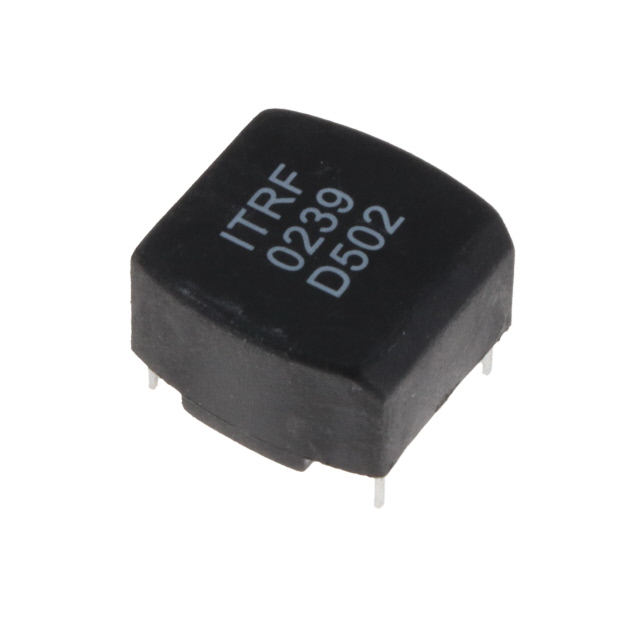

ITRF-0239-D502

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.5A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.5A

Technical Specifications

Parameters and characteristics for this part

Specification	ITRF-0239-D502

ET (Volt-Time)	350 VµS
Inductance	1.6 mH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	0.878 in
Size / Dimension [x]	22.3 mm
Size / Dimension [y]	0.894 in
Size / Dimension [y]	22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Weight	9.97 g
Weight	0.352 oz

Pulse Transformers ITRF Pulse transform THT 0.1A

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Inductance	Transformer Type	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [x]	Size / Dimension [y]	ET (Volt-Time)
SCHURTER Inc. ITRF-0249-D101	9.12 g	0.32 oz	0.701 in 17.8 mm	0.717 in 18.2 mm	1.2 mH	Isolation and Data Interface (Encapsulated)	Through Hole	13 mm	0.512 "	-25 °C 100 °C	1	1	1
SCHURTER Inc. ITRF-0239-D502	9.97 g	0.352 oz	22.3 mm	22.7 mm	1.6 mH	SCR and Triac Trigger (Encapsulated)	Through Hole			-25 °C 100 °C	1	1	1	0.878 in	0.894 in	350 VµS
SCHURTER Inc. ITRF-0235-D101	8.22 g	0.29 oz	13 mm	15.2 mm		SCR and Triac Trigger (Encapsulated)	Through Hole	10.6 mm	0.417 in	-25 °C 100 °C	1	1	1	0.512 in	0.598 in	150 VµS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pulse Transformers ITRF Pulse transform THT 0.1A

Technical documentation and resources
