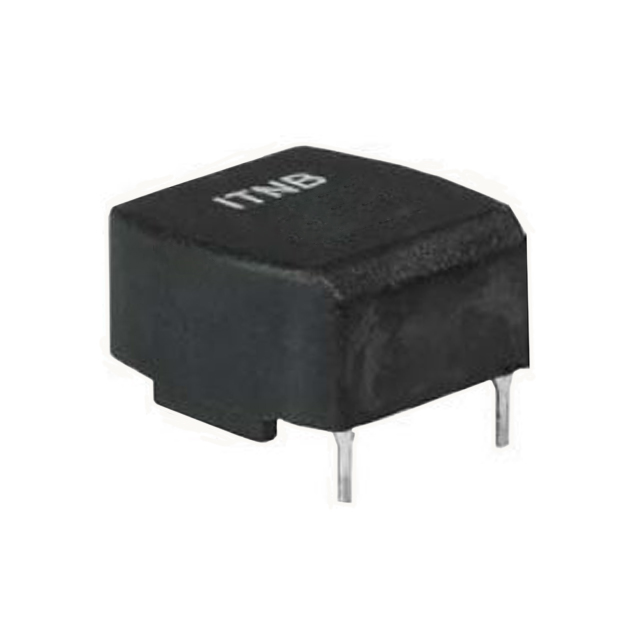

ITRF-0249-D101

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.1A

Technical Specifications

Parameters and characteristics for this part

Specification	ITRF-0249-D101

Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Inductance	1.2 mH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	0.701 in, 17.8 mm
Size / Dimension [y]	18.2 mm, 0.717 in
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Weight	9.12 g
Weight	0.32 oz

Pulse Transformers ITRF Pulse transform THT 0.1A

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Inductance	Transformer Type	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [x]	Size / Dimension [y]	ET (Volt-Time)
SCHURTER Inc. ITRF-0249-D101	9.12 g	0.32 oz	0.701 in 17.8 mm	0.717 in 18.2 mm	1.2 mH	Isolation and Data Interface (Encapsulated)	Through Hole	13 mm	0.512 "	-25 °C 100 °C	1	1	1
SCHURTER Inc. ITRF-0239-D502	9.97 g	0.352 oz	22.3 mm	22.7 mm	1.6 mH	SCR and Triac Trigger (Encapsulated)	Through Hole			-25 °C 100 °C	1	1	1	0.878 in	0.894 in	350 VµS
SCHURTER Inc. ITRF-0235-D101	8.22 g	0.29 oz	13 mm	15.2 mm		SCR and Triac Trigger (Encapsulated)	Through Hole	10.6 mm	0.417 in	-25 °C 100 °C	1	1	1	0.512 in	0.598 in	150 VµS
