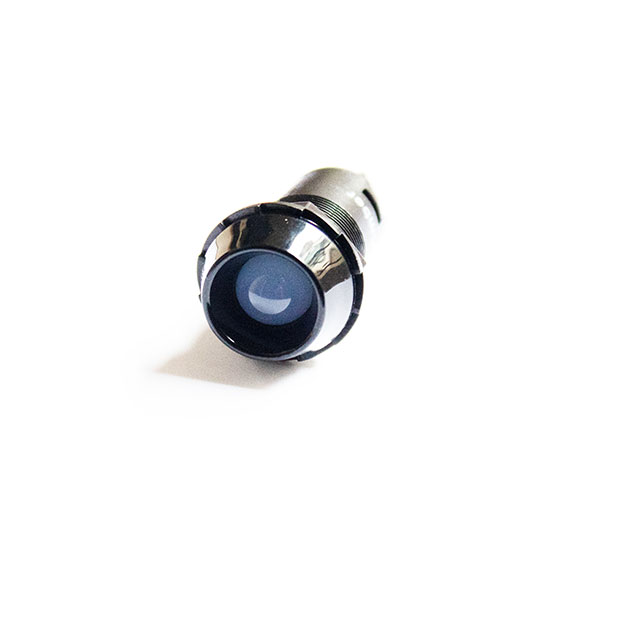

LP4-10-1-A
ActiveSwitch Components
LED INDICATOR 10MM -AMBER, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP4-10-1-A
ActiveSwitch Components
LED INDICATOR 10MM -AMBER, SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP4-10-1-A |
|---|---|
| Lamp Color | Amber |
| Lens Color | White |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Protrusive Head |
| Lens Transparency | Diffused |
| Millicandela Rating | 200 mcd |
| Panel Cutout Dimensions | 0.64 in |
| Panel Cutout Dimensions | 16.2 mm |
| Panel Cutout Shape | Round |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage | 2.4 V |
LP4-10 Series
| Part | Type | Lens Color | Lens Style | Voltage | Panel Cutout Dimensions | Panel Cutout Dimensions | Termination Style | Millicandela Rating | Panel Cutout Shape | Lens Size [diameter] | Viewing Angle | Lamp Color | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switch Components | LED | White | Round with Protrusive Head | 2.4 V | 0.64 in | 16.2 mm | Quick Connect - 0.250" (6.3mm) | 250 mcd | Round | 10 mm | 110 ° | Red | Diffused |
Switch Components | LED | White | Round with Protrusive Head | 3.9 V | 0.64 in | 16.2 mm | Quick Connect - 0.250" (6.3mm) | 700 mcd | Round | 10 mm | 120 ° | Green | Diffused |
Switch Components | LED | White | Round with Protrusive Head | 2.4 V | 0.64 in | 16.2 mm | Quick Connect - 0.250" (6.3mm) | 200 mcd | Round | 10 mm | 120 ° | Amber | Diffused |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.68 | |
| 10 | $ 4.00 | |||
| 25 | $ 3.32 | |||
| 50 | $ 3.01 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.22 | |||
| 1000 | $ 2.01 | |||
Description
General part information
LP4-10 Series
LED Panel Indicator Amber Diffused 120° 2.4V 20mA Quick Connect - 0.250" (6.3mm)
