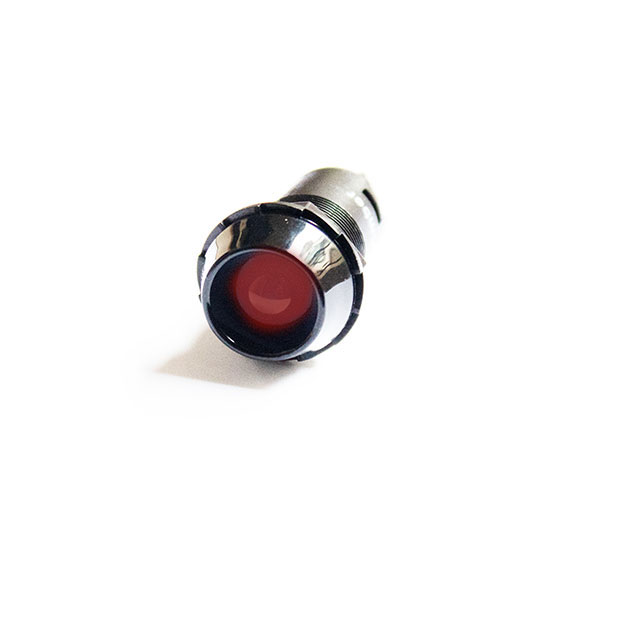

LP4-10-1-R
ActiveSwitch Components
LED INDICATOR 10MM - RED, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP4-10-1-R
ActiveSwitch Components
LED INDICATOR 10MM - RED, SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP4-10-1-R |
|---|---|
| Lamp Color | Red |
| Lens Color | White |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Protrusive Head |
| Lens Transparency | Diffused |
| Millicandela Rating | 250 mcd |
| Panel Cutout Dimensions | 0.64 in |
| Panel Cutout Dimensions | 16.2 mm |
| Panel Cutout Shape | Round |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.68 | |
| 10 | $ 4.00 | |||
| 25 | $ 3.32 | |||
| 50 | $ 3.01 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.22 | |||
| 1000 | $ 2.01 | |||
Description
General part information
LP4-10 Series
LED Panel Indicator Red Diffused 110° 2.4V 20mA Quick Connect - 0.250" (6.3mm)
