09330244639

Active

HARTING Technology Group

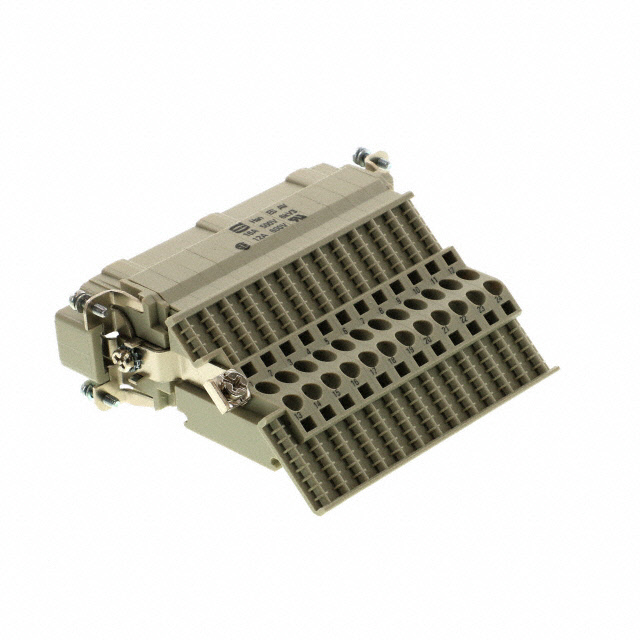

HEAVY DUTY INSERT, PLUG, 24POS, 2.5MM2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

09330244639

Active

HARTING Technology Group

HEAVY DUTY INSERT, PLUG, 24POS, 2.5MM2

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09330244639

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Terminal Block, Straight - Push In
Voltage Rating	500 V

han-es-r-av Series

Part	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Gender	Housing Material	Material Flammability Rating	Termination Style	Color	Current Rating (Amps)
HARTING Technology Group 09330064735	Copper Alloy	6+Ground	125 °C	-40 °C	Silver	600 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330164639	Copper Alloy	16+Ground	125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244629	Copper Alloy		125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330104629	Copper Alloy	10+Ground	125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244639	Copper Alloy		125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330104725	Copper Alloy	10+Ground			Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330064736	Copper Alloy	6+Ground			Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330244729	Copper Alloy		125 °C	-40 °C	Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244625	Copper Alloy				Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330244636	Copper Alloy				Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 171.67
Newark	Each	1	$ 109.18
		5	$ 101.69
		10	$ 95.16
		25	$ 89.41

Description

General part information

han-es-r-av Series

Male Insert Gray 24+Ground Position Terminal Block, Straight - Push In
