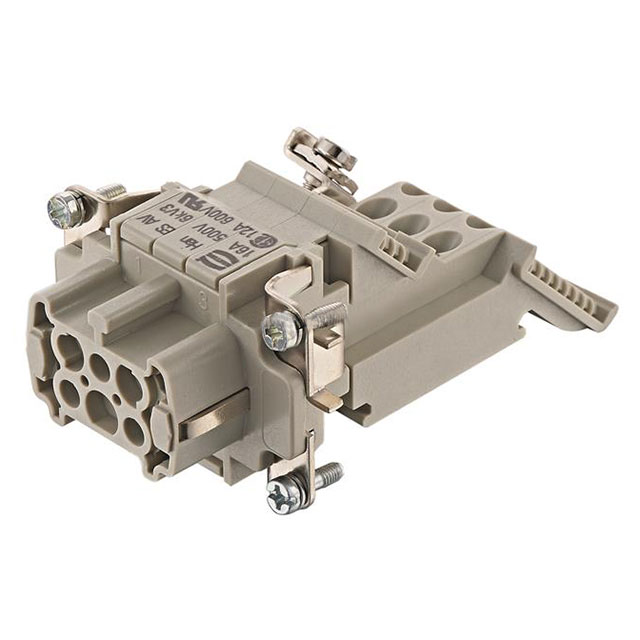

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 16A; 500V; HAN E® AV; PIN: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09330064736

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 16A; 500V; HAN E® AV; PIN: 6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09330064736

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Termination Style	Terminal Block, Straight - Screw
Voltage Rating	500 V

han-es-r-av Series

Part	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Gender	Housing Material	Material Flammability Rating	Termination Style	Color	Current Rating (Amps)
HARTING Technology Group 09330064735	Copper Alloy	6+Ground	125 °C	-40 °C	Silver	600 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330164639	Copper Alloy	16+Ground	125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244629	Copper Alloy		125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330104629	Copper Alloy	10+Ground	125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244639	Copper Alloy		125 °C	-40 °C	Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330104725	Copper Alloy	10+Ground			Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330064736	Copper Alloy	6+Ground			Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330244729	Copper Alloy		125 °C	-40 °C	Silver	500 V	Female	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Push In	Gray	12 A
HARTING Technology Group 09330244625	Copper Alloy				Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A
HARTING Technology Group 09330244636	Copper Alloy				Silver	500 V	Male	Polycarbonate (PC)	UL94 V-0	Terminal Block Straight - Screw	Gray	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.10
		10	$ 42.30
		25	$ 40.68
		50	$ 39.32
		100	$ 37.15
		250	$ 36.07
Newark	Each	1	$ 59.39
		10	$ 53.85
		25	$ 51.70
		50	$ 48.31
		100	$ 46.47
		250	$ 44.01
TME	N/A	1	$ 43.71
		3	$ 39.11
		5	$ 34.51

Description

General part information

han-es-r-av Series

Female Insert Gray 6+Ground Position Terminal Block, Straight - Screw
