RF3-1A-AC-2-B

Active

Switch Components

VAC MINI, SPST OFF-ON - IP65

Search across all available documentation for this part.

Active

Switch Components

VAC MINI, SPST OFF-ON - IP65

Technical Specifications

Parameters and characteristics for this part

Specification	RF3-1A-AC-2-B

Actuator Marking	No Marking
Actuator Type	Flat
Approval Agency	CSA, cURus, ENEC
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	24.5 mm
Panel Cutout Dimensions [y]	18.5 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)

Part	Approval Agency	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Color - Actuator/Cap	Actuator Type	Illumination Type, Color	Actuator Marking	Current Rating (Amps)	Voltage Rating - AC
Switch Components RF3-1A-DC-2-GL	CSA cURus ENEC	On-Off	IP65 - Dust Tight Water Resistant	12 VDC	Panel Mount Snap-In	12 V	13 mm	19.2 mm	Quick Connect - 0.187" (4.7mm)	10000 Steps	-25 °C	85 °C	SPST	6000 Cycles	Green	Flat - Illuminated	Green LED	No Marking	16 A
Switch Components RF3-1A-DC-2-B	CSA cURus ENEC	On-Off	IP65 - Dust Tight Water Resistant		Panel Mount Snap-In	12 V	13 mm	19.2 mm	Quick Connect - 0.187" (4.7mm)	10000 Steps	-25 °C	85 °C	SPST	6000 Cycles	Black	Flat		No Marking	16 A 16 A	125 V
Switch Components RF3-1A-AC-2-B	CSA cURus ENEC	On-Off	IP65 - Dust Tight Water Resistant		Panel Mount Snap-In		18.5 mm	24.5 mm	Quick Connect - 0.187" (4.7mm)		-25 °C	85 °C	SPST		Black	Flat		No Marking	16 A
Switch Components RF3-1A-DC-2-RL	CSA cURus ENEC	On-Off	IP65 - Dust Tight Water Resistant	12 VDC	Panel Mount Snap-In	12 V	13 mm	19.2 mm	Quick Connect - 0.187" (4.7mm)	10000 Steps	-25 °C	85 °C	SPST	6000 Cycles	Red	Flat - Illuminated	LED Red	No Marking	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

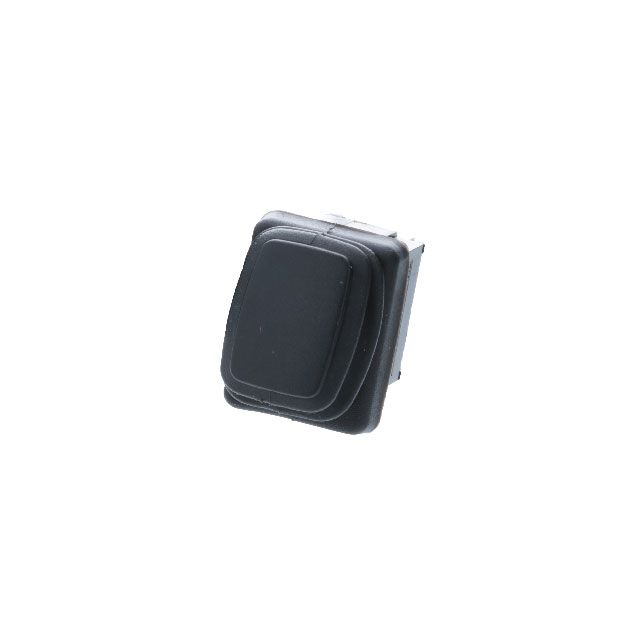

Rocker Switch SPST 16A (AC) Panel Mount, Snap-In
