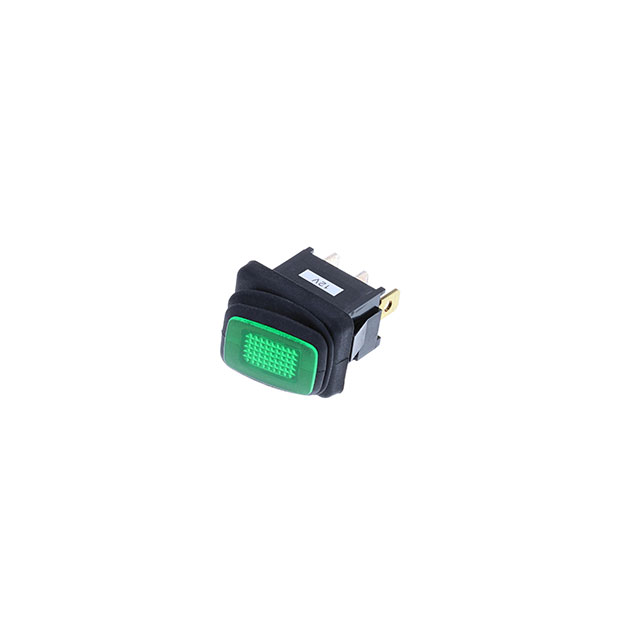

RF3-1A-DC-2-GL
ActiveSwitch Components
SWITCH ROCKER SPST 16A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RF3-1A-DC-2-GL
ActiveSwitch Components
SWITCH ROCKER SPST 16A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RF3-1A-DC-2-GL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | SPST |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.95 | |
Description
General part information
RF3-1A Series
Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
