184A009-292L011
ActiveMH Connectors

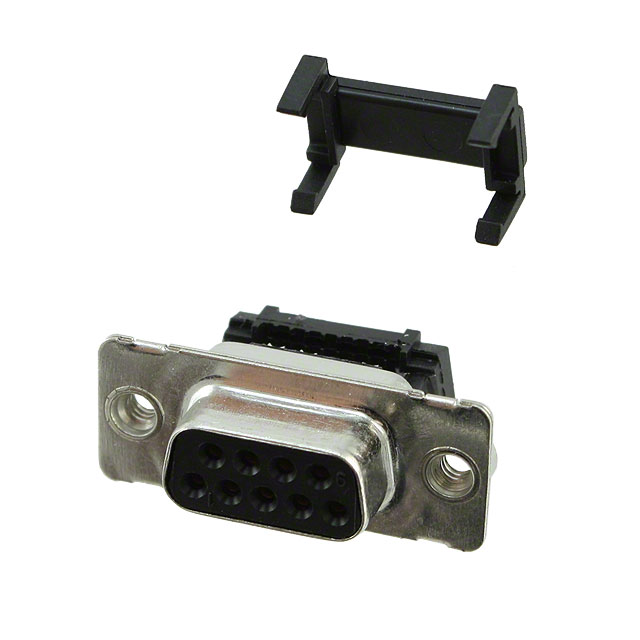

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, IDC / IDT, DE, 184A SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
184A009-292L011
ActiveMH Connectors
D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, IDC / IDT, DE, 184A SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 184A009-292L011 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 1.5 A |
| Dielectric Material | Polyester, Glass Filled |
| Features | Feed Through, Strain Relief |
| Flange Feature | Cable Side |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
184A009 Series
9 Position D-Sub Receptacle, Female Sockets Connector
