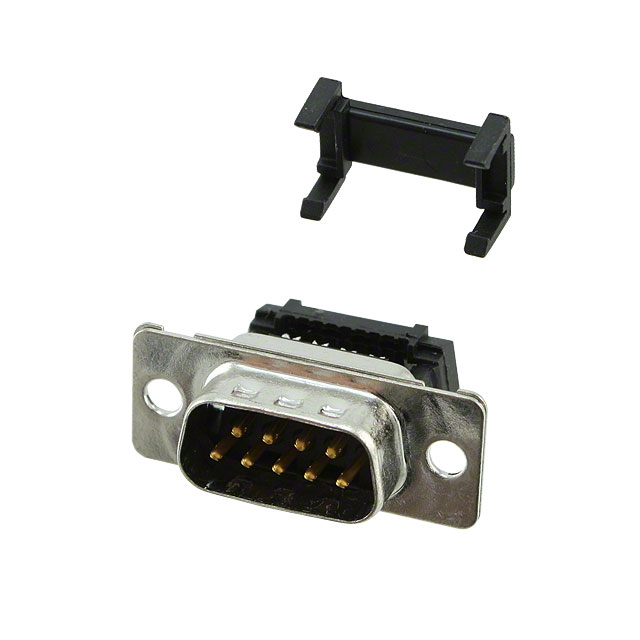

184A009-192L001
ActiveMH Connectors
D SUB CONNECTOR, 184A SERIES, DE, PLUG, 9, STEEL, IDC / IDT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
184A009-192L001
ActiveMH Connectors
D SUB CONNECTOR, 184A SERIES, DE, PLUG, 9, STEEL, IDC / IDT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 184A009-192L001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 1.5 A |
| Dielectric Material | Polyester, Glass Filled |
| Features | Strain Relief, Grounding Indents, Feed Through |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.15 | |
| 10 | $ 16.60 | |||
| 25 | $ 15.73 | |||
| 70 | $ 15.50 | |||
| 140 | $ 13.68 | |||
| 280 | $ 12.77 | |||
| 490 | $ 12.49 | |||
Description
General part information
184A009 Series
9 Position D-Sub Plug, Male Pins Connector
