SHR-C1

Active

Essentra Access Solutions

CBL CLIP C-TYPE BLACK ARROWHEAD

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP C-TYPE BLACK ARROWHEAD

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-C1

Color	Black
Height [z]	1.41 in
Height [z]	35.81 mm
Length [x]	28.96 mm
Length [x]	1.14 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [Max] [custom]	24.99 mm
Opening Size [Max] [custom]	0.984 in
Opening Size [Min] [custom]	19.99 mm
Opening Size [Min] [custom]	0.787 in
Panel Hole Size	6.4 mm
Panel Hole Size	0.252 "
Panel Thickness [Max]	0.079 "
Panel Thickness [Max]	2 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	C-Type, Clip
Type Attributes	Hinged, Locking
Width [x]	12.44 mm
Width [x]	0.49 in

Part	Type Attributes	Length	Length	Material	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Height [z]	Height [z]	Type	Color	Width	Width [x]	Screw Size	Screw Size	Material Flammability Rating	Mounting Type	Adhesive	Width [x]	Panel Hole Size	Panel Hole Size	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Height [z]	Length [x]	Length [x]
Essentra Access Solutions SHR-C2	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	1.28 in	32.51 mm	C-Type Clip	Black	25.4 mm	1 in	M4	#8	UL94 V-2	Fastener
Essentra Access Solutions SHR-C3	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	1.28 in	32.51 mm	C-Type Clip	Black	25.4 mm	1 in	M4	#8	UL94 V-2	Adhesive Fastener	Rubber Based (RMS-375)
Essentra Access Solutions SHR-C4	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in			C-Type Clip	Black		0.49 in			UL94 V-2	Arrowhead		12.44 mm	0.374 in	9.5 mm	0.079 "	0.031 "	2 mm	0.79 mm
Essentra Access Solutions SHR-C1	Hinged Locking			Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	35.81 mm		C-Type Clip	Black		0.49 in			UL94 V-2	Arrowhead Winged		12.44 mm	0.252 "	6.4 mm	0.079 "	0.031 "	2 mm	0.79 mm	1.41 in	28.96 mm	1.14 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

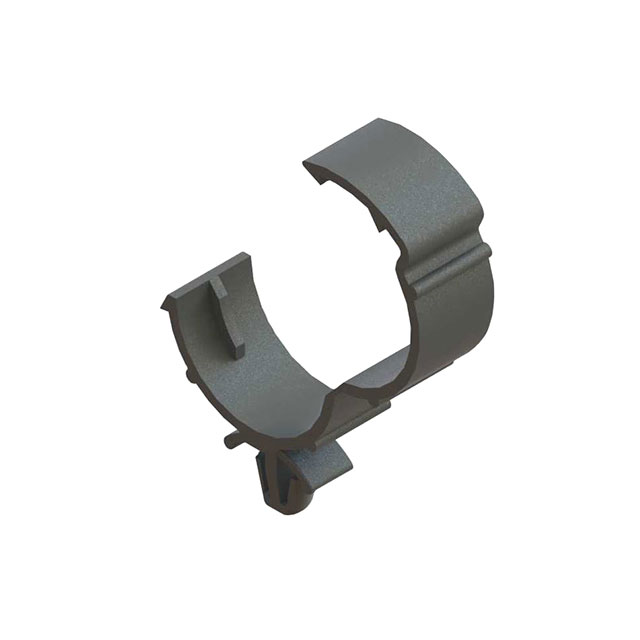

Cable Clip, C-Type Black Arrowhead, Winged 0.787" ~ 0.984" (19.99mm ~ 24.99mm)
