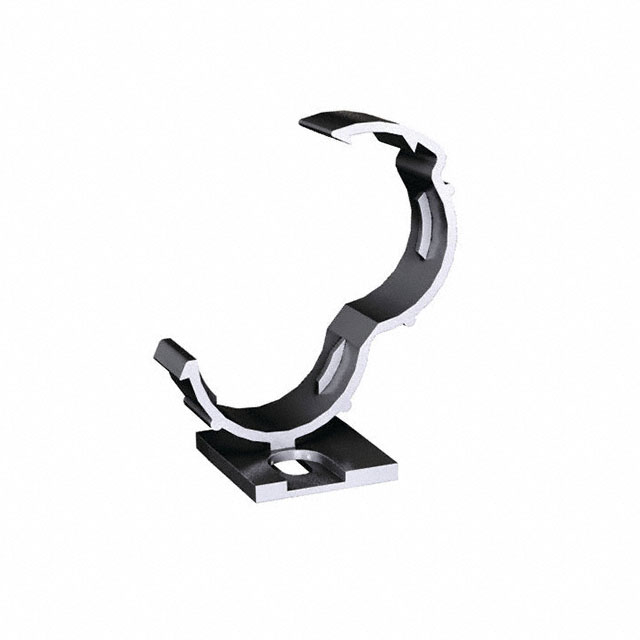

SHR-C3

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 22 MM, 12.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 22 MM, 12.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-C3

Adhesive	Rubber Based (RMS-375)
Color	Black
Height [z]	1.28 in
Height [z]	32.51 mm
Length	29.97 mm
Length	1.18 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener, Adhesive
Opening Size [Max] [custom]	24.99 mm
Opening Size [Max] [custom]	0.984 in
Opening Size [Min] [custom]	19.99 mm
Opening Size [Min] [custom]	0.787 in
Screw Size	M4
Screw Size	#8
Type	C-Type, Clip
Type Attributes	Hinged, Locking
Width	25.4 mm
Width [x]	1 in

Part	Type Attributes	Length	Length	Material	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Height [z]	Height [z]	Type	Color	Width	Width [x]	Screw Size	Screw Size	Material Flammability Rating	Mounting Type	Adhesive	Width [x]	Panel Hole Size	Panel Hole Size	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Height [z]	Length [x]	Length [x]
Essentra Access Solutions SHR-C2	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	1.28 in	32.51 mm	C-Type Clip	Black	25.4 mm	1 in	M4	#8	UL94 V-2	Fastener
Essentra Access Solutions SHR-C3	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	1.28 in	32.51 mm	C-Type Clip	Black	25.4 mm	1 in	M4	#8	UL94 V-2	Adhesive Fastener	Rubber Based (RMS-375)
Essentra Access Solutions SHR-C4	Hinged Locking	29.97 mm	1.18 in	Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in			C-Type Clip	Black		0.49 in			UL94 V-2	Arrowhead		12.44 mm	0.374 in	9.5 mm	0.079 "	0.031 "	2 mm	0.79 mm
Essentra Access Solutions SHR-C1	Hinged Locking			Polyamide (PA66) Nylon 6/6	19.99 mm	24.99 mm	0.787 in	0.984 in	35.81 mm		C-Type Clip	Black		0.49 in			UL94 V-2	Arrowhead Winged		12.44 mm	0.252 "	6.4 mm	0.079 "	0.031 "	2 mm	0.79 mm	1.41 in	28.96 mm	1.14 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Black Adhesive, Fastener 0.787" ~ 0.984" (19.99mm ~ 24.99mm)
