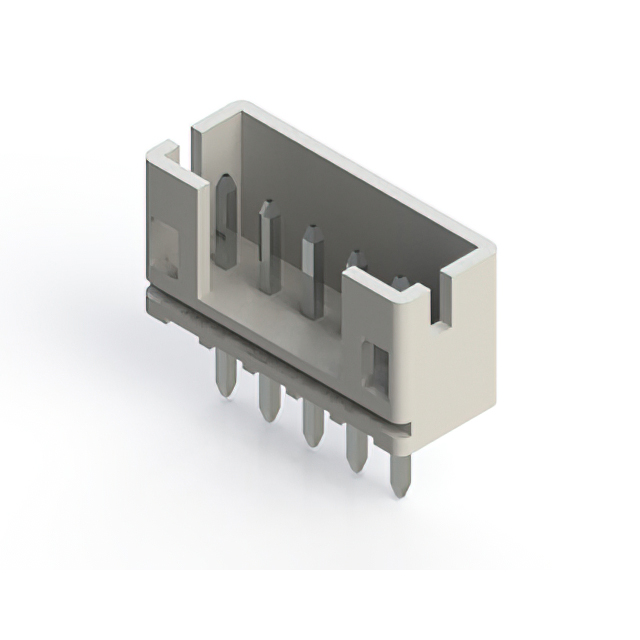

140-505-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 5 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-505-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 5 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	140-505-415-101

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

140-505 Series

Part	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Contact Finish - Post	Style	Contact Shape	Shrouding	Insulation Material	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Insulation Color	Voltage Rating	Number of Positions Loaded	Material Flammability Rating	Connector Type	Features	Contact Termination	Color	Pitch [x]	Pitch [x]	Note	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
EDAC Inc. 140-505-417-011	Brass	Surface Mount	-40 °C	105 ░C	Male Pin	1	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Solder	0.079 in	2 mm	2 A	5.51 mm	0.217 in	Detent Lock	Natural	100 VAC	All	UL94 V-0	Header	Solder Retention
EDAC Inc. 140-505-210-011		Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	1					Polyamide (PA66) Nylon 6/6							Detent Lock					Receptacle	Polarizing Key	Crimp	Natural	0.079 in	2 mm	Contacts Not Included
EDAC Inc. 140-505-417-060	Brass	Surface Mount Right Angle	-25 °C	85 °C	Male Pin	1	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Nylon 9T Polyamide (PA9T)	Solder	0.079 in	2 mm	2 A	5.51 mm	0.217 in	Detent Lock	Natural	100 VAC	All	UL94 V-0	Header	Solder Retention
EDAC Inc. 140-505-415-100	Brass	Through Hole Right Angle	-40 °C	105 ░C	Male Pin	1	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Solder	0.079 in	2 mm	2 A			Detent Lock	Natural	100 VAC	All	UL94 V-0	Header							0.134 in	3.4 mm	0.185 in	4.7 mm
EDAC Inc. 140-505-415-001	Brass	Through Hole	-40 °C	105 ░C	Male Pin	1	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Kinked Pin Solder	0.079 in	2 mm	2 A			Detent Lock	Natural	100 VAC	All	UL94 V-0	Header							0.134 in	3.4 mm	0.24 in	6.1 mm
EDAC Inc. 140-505-415-101	Brass	Through Hole	-40 °C	105 ░C	Male Pin	1	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Solder	0.079 in	2 mm	2 A			Detent Lock	Natural	100 VAC	All	UL94 V-0	Header									0.24 in	6.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.11

Description

General part information

140-505 Series

Connector Header Through Hole 5 position 0.079" (2.00mm)
