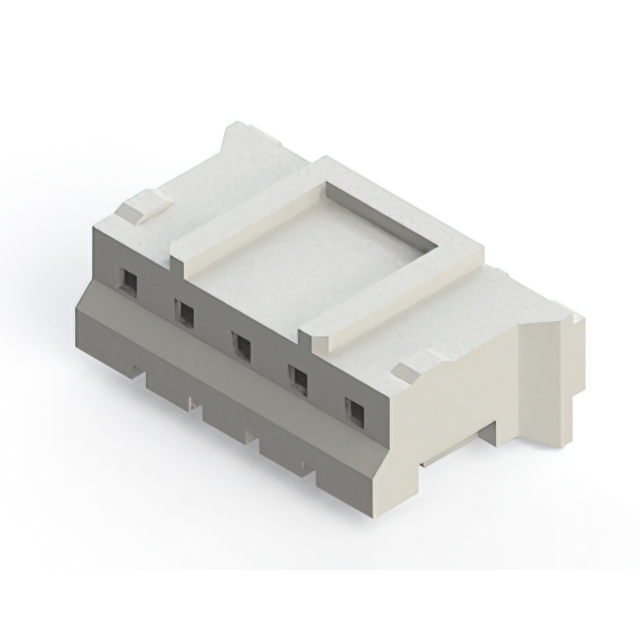

CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140-505-210-011
ActiveEDAC Inc.
CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 140-505-210-011 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Polarizing Key |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
140-505 Series
| Part | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Contact Finish - Post | Style | Contact Shape | Shrouding | Insulation Material | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Current Rating (Amps) | Insulation Height [custom] | Insulation Height [custom] | Fastening Type | Insulation Color | Voltage Rating | Number of Positions Loaded | Material Flammability Rating | Connector Type | Features | Contact Termination | Color | Pitch [x] | Pitch [x] | Note | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Brass | Surface Mount | -40 °C | 105 ░C | Male Pin | 1 | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Solder | 0.079 in | 2 mm | 2 A | 5.51 mm | 0.217 in | Detent Lock | Natural | 100 VAC | All | UL94 V-0 | Header | Solder Retention | |||||||||
EDAC Inc. | Free Hanging (In-Line) | -25 °C | 85 °C | Female Socket | 1 | Polyamide (PA66) Nylon 6/6 | Detent Lock | Receptacle | Polarizing Key | Crimp | Natural | 0.079 in | 2 mm | Contacts Not Included | |||||||||||||||||||
EDAC Inc. | Brass | Surface Mount Right Angle | -25 °C | 85 °C | Male Pin | 1 | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Solder | 0.079 in | 2 mm | 2 A | 5.51 mm | 0.217 in | Detent Lock | Natural | 100 VAC | All | UL94 V-0 | Header | Solder Retention | |||||||||
EDAC Inc. | Brass | Through Hole Right Angle | -40 °C | 105 ░C | Male Pin | 1 | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | Solder | 0.079 in | 2 mm | 2 A | Detent Lock | Natural | 100 VAC | All | UL94 V-0 | Header | 0.134 in | 3.4 mm | 0.185 in | 4.7 mm | ||||||||
EDAC Inc. | Brass | Through Hole | -40 °C | 105 ░C | Male Pin | 1 | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | Kinked Pin Solder | 0.079 in | 2 mm | 2 A | Detent Lock | Natural | 100 VAC | All | UL94 V-0 | Header | 0.134 in | 3.4 mm | 0.24 in | 6.1 mm | ||||||||
EDAC Inc. | Brass | Through Hole | -40 °C | 105 ░C | Male Pin | 1 | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | Solder | 0.079 in | 2 mm | 2 A | Detent Lock | Natural | 100 VAC | All | UL94 V-0 | Header | 0.24 in | 6.1 mm |
