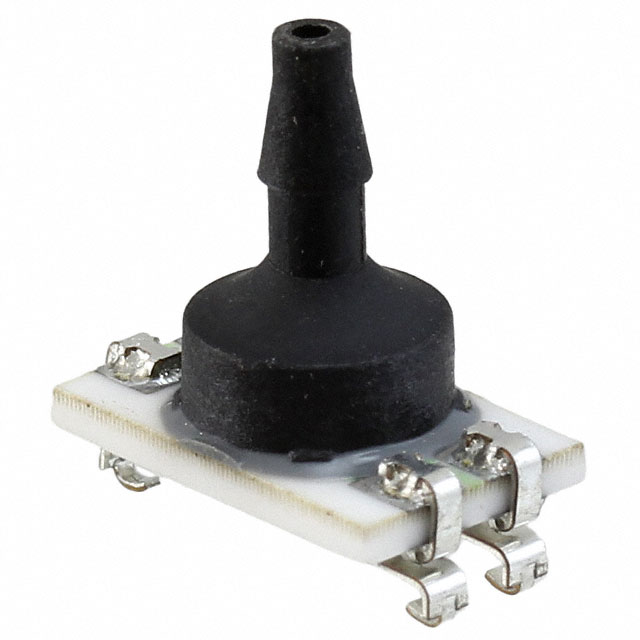

TBPMANN005PGUCV

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.11" .025V 4SMT

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.11" .025V 4SMT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Port Style	Applications	Termination Style	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Output [Max]	Output	Pressure Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Supplier Device Package	Output Type	Maximum Pressure	Maximum Pressure	Port Size
Honeywell Sensing and Productivity Solutions TBPMANN005PGUCV	Surface Mount	Barbed	Board Mount	SMD (SMT) Tab	0.11 " 2.74 mm	125 °C	-40 °C	0.15 %	30 PSI	206.84 kPa	4-SMD J-Lead Top Port	25 mV	5 V	Vented Gauge	Temperature Compensated	12 V	1.5 V	34.47 kPa	5 PSI	4-SMT	Wheatstone Bridge
Honeywell Sensing and Productivity Solutions TBPMANN400MGUCV	Surface Mount	Barbed	Board Mount	SMD (SMT) Tab	0.08 " 2.54 mm	125 °C	-40 °C	0.15 %			4-SMD J-Lead Top Port	29 mV		Vented Gauge	Temperature Compensated	12 V	1.5 V	40 kPa	5.8 PSI	4-SMT	Wheatstone Bridge	200000 kPa	29007.55 PSI	Male Tube
Honeywell Sensing and Productivity Solutions TBPMANN150PGUCV	Surface Mount	Barbed	Board Mount	SMD (SMT) Tab	0.11 " 2.74 mm	125 °C	-40 °C	0.15 %	245 PSI	1689.22 kPa	4-SMD J-Lead Top Port	45.75 mV		Vented Gauge	Temperature Compensated	12 V	1.5 V	1034.21 kPa	150 PSI	4-SMT	Wheatstone Bridge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 0 mV ~ 25 mV (5V) 4-SMD, J-Lead, Top Port

Technical documentation and resources
