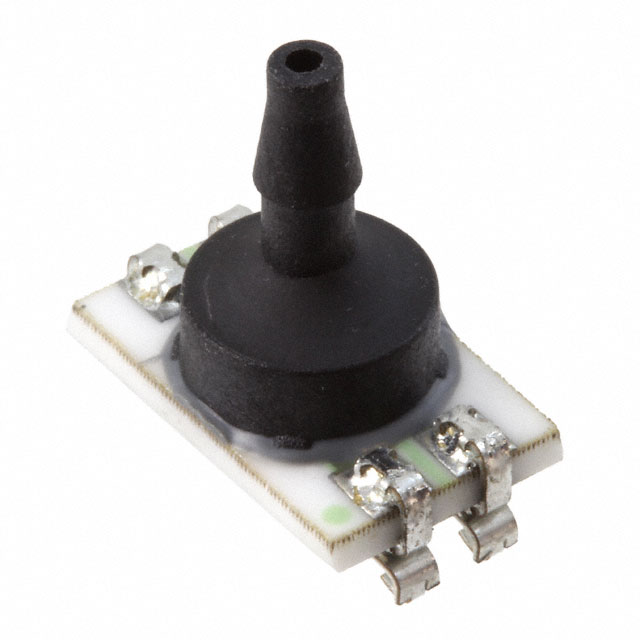

TBPMANN150PGUCV
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 150PSIG 0.11" .04575V SMT
Deep-Dive with AI
Search across all available documentation for this part.
TBPMANN150PGUCV
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 150PSIG 0.11" .04575V SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBPMANN150PGUCV |
|---|---|
| Accuracy | 0.15 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 245 PSI |
| Maximum Pressure [Max] | 1689.22 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 1034.21 kPa |
| Operating Pressure | 150 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 45.75 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SMD, Top Port, J-Lead |
| Port Size | 0.11 ", 2.74 mm |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Supplier Device Package | 4-SMT |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 1.5 V |
TBPMANN Series
| Part | Mounting Type | Port Style | Applications | Termination Style | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Accuracy | Maximum Pressure [Max] | Maximum Pressure [Max] | Package / Case | Output [Max] | Output [Min] | Output | Pressure Type | Features | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Pressure | Operating Pressure | Supplier Device Package | Output Type | Maximum Pressure | Maximum Pressure | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Surface Mount | Barbed | Board Mount | SMD (SMT) Tab | 0.11 " 2.74 mm | 125 °C | -40 °C | 0.15 % | 30 PSI | 206.84 kPa | 4-SMD J-Lead Top Port | 25 mV | 0 mV | 5 V | Vented Gauge | Temperature Compensated | 12 V | 1.5 V | 34.47 kPa | 5 PSI | 4-SMT | Wheatstone Bridge | |||
Honeywell Sensing and Productivity Solutions | Surface Mount | Barbed | Board Mount | SMD (SMT) Tab | 0.08 " 2.54 mm | 125 °C | -40 °C | 0.15 % | 4-SMD J-Lead Top Port | 29 mV | 0 mV | Vented Gauge | Temperature Compensated | 12 V | 1.5 V | 40 kPa | 5.8 PSI | 4-SMT | Wheatstone Bridge | 200000 kPa | 29007.55 PSI | Male Tube | |||
Honeywell Sensing and Productivity Solutions | Surface Mount | Barbed | Board Mount | SMD (SMT) Tab | 0.11 " 2.74 mm | 125 °C | -40 °C | 0.15 % | 245 PSI | 1689.22 kPa | 4-SMD J-Lead Top Port | 45.75 mV | 0 mV | Vented Gauge | Temperature Compensated | 12 V | 1.5 V | 1034.21 kPa | 150 PSI | 4-SMT | Wheatstone Bridge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 32.37 | |
| 5 | $ 27.30 | |||
| 10 | $ 25.37 | |||
| 25 | $ 23.03 | |||
| 50 | $ 21.40 | |||
| 100 | $ 19.89 | |||
| 500 | $ 19.76 | |||
Description
General part information
TBPMANN Series
Pressure Sensor 150PSI (1034.21kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 0 mV ~ 45.75 mV (5V) 4-SMD, J-Lead, Top Port
