284-402

Active

WAGO Corporation

JUMPER (BUSBAR), ADJACENT JUMPER, 284 SERIES TERMINAL BLOCKS, 280 SERIES

Search across all available documentation for this part.

Active

WAGO Corporation

JUMPER (BUSBAR), ADJACENT JUMPER, 284 SERIES TERMINAL BLOCKS, 280 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	284-402

Color	Gray
For Use With/Related Products	Terminal Blocks
Number of Positions	4
Style	Flat Pins
Type	Terminal Block, Cross Connection

Part	Type	Number of Positions	Style	For Use With/Related Products	Color	Number of Levels	Terminal - Width [y]	Current - IEC	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Length [x]	Length [x]	Mounting Type	Terminal - Width	Housing Color
WAGO Corporation 284-402	Terminal Block Cross Connection	4	Flat Pins	Terminal Blocks	Gray
WAGO Corporation 284-681	Feed Through				Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-601	Feed Through	2			Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-901	Feed Through	2			Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-339	End Plate			Terminal Blocks
WAGO Corporation 284-621	Potential Distributor	4				1		125 A	Polyamide (PA66) Nylon 6/6	12 mm	14 mm	10 AWG 24 AWG	2 AWG 8 AWG	Push In Spring Screw	10 mm² 35 mm²	0.2 mm² 6 mm²		3.5 in	88.9 mm	DIN Rail	17.5 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

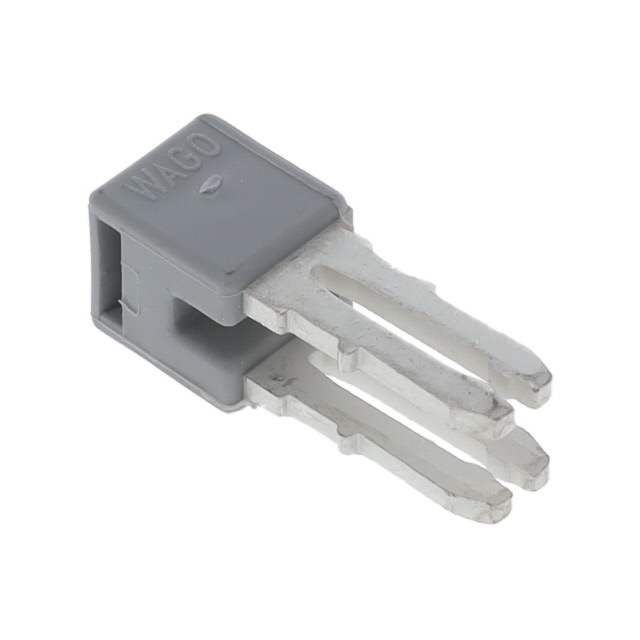

The 284-402 is a grey Insulated Adjacent Jumper for use with the rail mounted terminal block.
