284-681

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 24 AWG, 8 AWG, 10 MM², CLAMP, 57 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

284-681

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 24 AWG, 8 AWG, 10 MM², CLAMP, 57 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	284-681

Color	Gray
Current - IEC	57 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Stripping Length [Max]	13 mm
Stripping Length [Min]	12 mm
Terminal - Width [y]	10 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

284 Series

Part	Type	Number of Positions	Style	For Use With/Related Products	Color	Number of Levels	Terminal - Width [y]	Current - IEC	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Length [x]	Length [x]	Mounting Type	Terminal - Width	Housing Color
WAGO Corporation 284-402	Terminal Block Cross Connection	4	Flat Pins	Terminal Blocks	Gray
WAGO Corporation 284-681	Feed Through				Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-601	Feed Through	2			Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-901	Feed Through	2			Gray	1	10 mm	57 A	Polyamide (PA66) Nylon 6/6	12 mm	13 mm	24 AWG	8 AWG	Push In Spring	10 mm²	0.2 mm²	800 V
WAGO Corporation 284-339	End Plate			Terminal Blocks
WAGO Corporation 284-621	Potential Distributor	4				1		125 A	Polyamide (PA66) Nylon 6/6	12 mm	14 mm	10 AWG 24 AWG	2 AWG 8 AWG	Push In Spring Screw	10 mm² 35 mm²	0.2 mm² 6 mm²		3.5 in	88.9 mm	DIN Rail	17.5 mm	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.34
		10	$ 9.10
		25	$ 8.58
		50	$ 8.17
		100	$ 8.01
		250	$ 6.98
		500	$ 6.72
		1000	$ 6.46
Newark	Each	1	$ 12.82
		25	$ 12.13
		100	$ 11.45
		250	$ 10.71
		500	$ 9.97

Description

General part information

284 Series

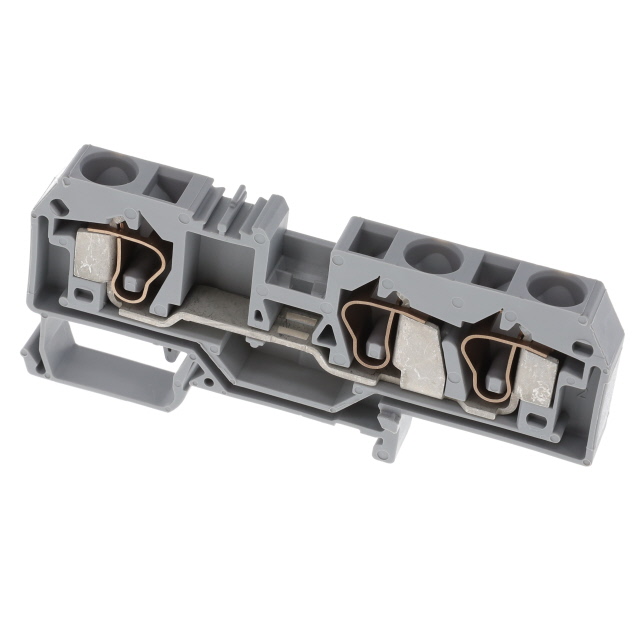

The 284-681 is a 3-conductor gray Through Terminal Block with center marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 24 to 8AWG wire size.
