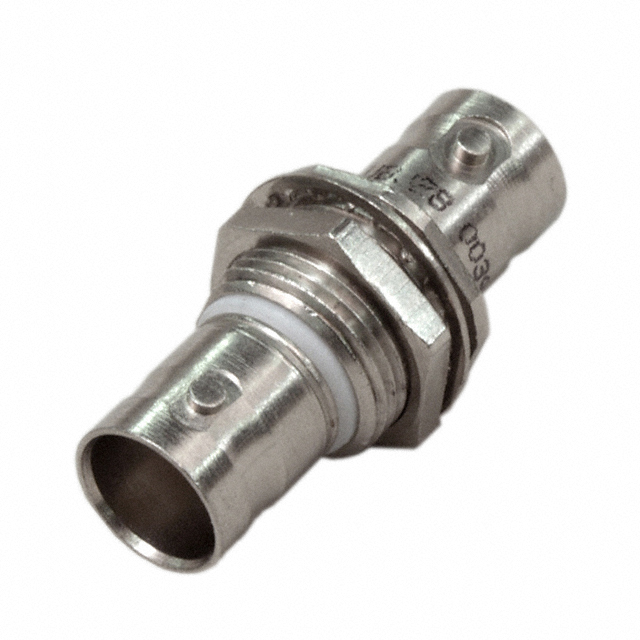

UBJ28

Active

Cinch Connectivity Solutions Trompeter

CONN BNC ADAPTER 0HZ TO 3GHZ 75OHM ST PANEL MOUNT RCP/RCP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

UBJ28

Active

Cinch Connectivity Solutions Trompeter

CONN BNC ADAPTER 0HZ TO 3GHZ 75OHM ST PANEL MOUNT RCP/RCP GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UBJ28

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

UBJ Series

Part	Convert From (Adapter End)	Impedance	Center Gender	Features	Style	Adapter Type	Includes	Mounting Feature	Conversion Type	Frequency - Max [Max]	Body Material	Body Finish	Center Contact Plating	Adapter Series	Convert To (Adapter End)	Dielectric Material	Fastening Type	Center Contact Material	Contact Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Shield Termination	Number of Ports	Connector Style	Includes	Cable Group
Cinch Connectivity Solutions Trompeter UBJ48GF	TNC Jack Female Socket	75 Ohms	Female to Female	Filter	Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	500 MHz	Brass	Nickel	Gold	TNC to TNC	Female Socket TNC Jack
Cinch Connectivity Solutions Trompeter UBJ28GF	BNC Jack Female Socket	75 Ohms	Female to Female	Filter	Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	4 GHz	Brass	Nickel	Gold	BNC to BNC	BNC Jack Female Socket	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Beryllium Copper
Cinch Connectivity Solutions Trompeter UBJ21		75 Ohms					Connector Nut Washer	Bulkhead - Front Side Nut		4 GHz	Brass	Nickel	Gold			Polytetrafluoroethylene (PTFE)	Bayonet Lock		Solder Cup	Silver	-65 ░C	165 °C	Female Socket Jack	500 V	Solder	1	BNC
Cinch Connectivity Solutions Trompeter UBJ220-009		75 Ohms						Bulkhead - Front Side Nut		4 GHz	Brass	Nickel	Gold			Polytetrafluoroethylene (PTFE)	Bayonet Lock		Crimp	Silver	-65 ░C	165 °C	Female Socket Jack	500 V	Crimp	1	BNC	1 pcs 1 pcs 1 pcs 1 pcs	Belden 8218 Essex 21-597 YR23023
Cinch Connectivity Solutions Trompeter UBJ24	BNC Jack Female Socket	75 Ohms	Female to Female		Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	4 GHz	Brass	Nickel	Gold	BNC to BNC	BNC Jack Female Socket		Bayonet Lock
Cinch Connectivity Solutions Trompeter UBJ228	BNC Jack Female Socket	75 Ohms	Female to Female	Isolated	Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	4 GHz	Brass	Nickel	Gold	BNC to BNC	BNC Jack Female Socket		Bayonet Lock
Cinch Connectivity Solutions Trompeter UBJ28	BNC Jack Female Socket	75 Ohms	Female to Female		Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	500 MHz	Brass	Nickel	Gold	BNC to BNC	BNC Jack Female Socket		Bayonet Lock
Cinch Connectivity Solutions Trompeter UBJ26-5		75 Ohms					Connector Nut Washer	Bulkhead - Front Side Nut		4 GHz	Brass	Nickel	Gold				Bayonet Lock		Solder	Silver	-65 ░C	165 °C	Female Socket Jack	500 V	Wrench Clamp	1	BNC		RG-174
Cinch Connectivity Solutions Trompeter UBJ224	BNC Jack Female Socket	75 Ohms	Female to Female		Straight	Jack to Jack	1 Connector 1 Lockwasher 1 Nut	Bulkhead	Same Series	4 GHz	Brass	Nickel	Gold	BNC to BNC	BNC Jack Female Socket		Bayonet Lock
Cinch Connectivity Solutions Trompeter UBJ226-004	BNC Jack Female Socket	75 Ohms	Female to Female		Straight	Jack to Jack		Bulkhead	Same Series					BNC to BNC	BNC Jack Female Socket		Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.35
		10	$ 21.55
		25	$ 22.20
		30	$ 21.54
		50	$ 21.54

Description

General part information

UBJ Series

CONN BNC ADAPTER 0HZ TO 3GHZ 75OHM ST PANEL MOUNT RCP/RCP GOLD

Documents

Technical documentation and resources

No documents available
