UBJ28GF
ObsoleteCinch Connectivity Solutions Trompeter

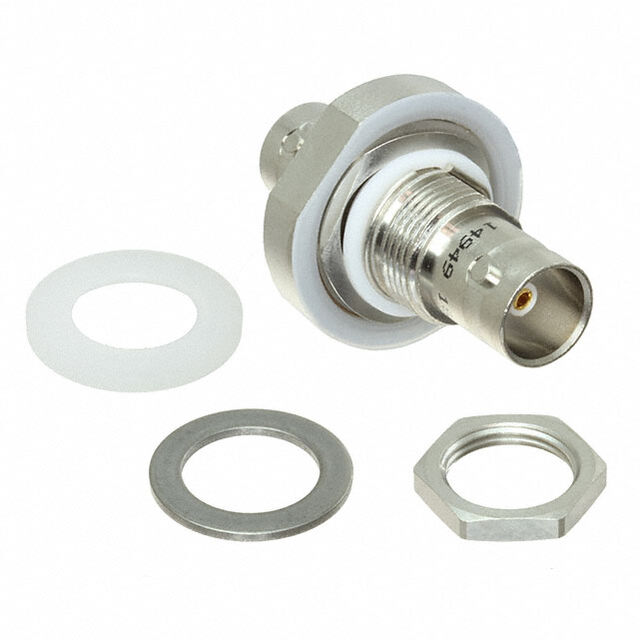

CONN ADAPT JACK-JACK BNC 75OHM
Deep-Dive with AI
Search across all available documentation for this part.
UBJ28GF
ObsoleteCinch Connectivity Solutions Trompeter
CONN ADAPT JACK-JACK BNC 75OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UBJ28GF |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | Filter |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 75 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
UBJ Series
| Part | Convert From (Adapter End) | Impedance | Center Gender | Features | Style | Adapter Type | Includes | Mounting Feature | Conversion Type | Frequency - Max [Max] | Body Material | Body Finish | Center Contact Plating | Adapter Series | Convert To (Adapter End) | Dielectric Material | Fastening Type | Center Contact Material | Contact Termination | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Voltage Rating | Shield Termination | Number of Ports | Connector Style | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | TNC Jack Female Socket | 75 Ohms | Female to Female | Filter | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 500 MHz | Brass | Nickel | Gold | TNC to TNC | Female Socket TNC Jack | ||||||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Filter | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 4 GHz | Brass | Nickel | Gold | BNC to BNC | BNC Jack Female Socket | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Beryllium Copper | |||||||||||
Cinch Connectivity Solutions Trompeter | 75 Ohms | Connector Nut Washer | Bulkhead - Front Side Nut | 4 GHz | Brass | Nickel | Gold | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Solder Cup | Silver | -65 ░C | 165 °C | Female Socket Jack | 500 V | Solder | 1 | BNC | |||||||||||
Cinch Connectivity Solutions Trompeter | 75 Ohms | Bulkhead - Front Side Nut | 4 GHz | Brass | Nickel | Gold | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Crimp | Silver | -65 ░C | 165 °C | Female Socket Jack | 500 V | Crimp | 1 | BNC | 1 pcs 1 pcs 1 pcs 1 pcs | Belden 8218 Essex 21-597 YR23023 | ||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 4 GHz | Brass | Nickel | Gold | BNC to BNC | BNC Jack Female Socket | Bayonet Lock | ||||||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Isolated | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 4 GHz | Brass | Nickel | Gold | BNC to BNC | BNC Jack Female Socket | Bayonet Lock | |||||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 500 MHz | Brass | Nickel | Gold | BNC to BNC | BNC Jack Female Socket | Bayonet Lock | ||||||||||||||
Cinch Connectivity Solutions Trompeter | 75 Ohms | Connector Nut Washer | Bulkhead - Front Side Nut | 4 GHz | Brass | Nickel | Gold | Bayonet Lock | Solder | Silver | -65 ░C | 165 °C | Female Socket Jack | 500 V | Wrench Clamp | 1 | BNC | RG-174 | |||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Straight | Jack to Jack | 1 Connector 1 Lockwasher 1 Nut | Bulkhead | Same Series | 4 GHz | Brass | Nickel | Gold | BNC to BNC | BNC Jack Female Socket | Bayonet Lock | ||||||||||||||
Cinch Connectivity Solutions Trompeter | BNC Jack Female Socket | 75 Ohms | Female to Female | Straight | Jack to Jack | Bulkhead | Same Series | BNC to BNC | BNC Jack Female Socket | Bayonet Lock |
