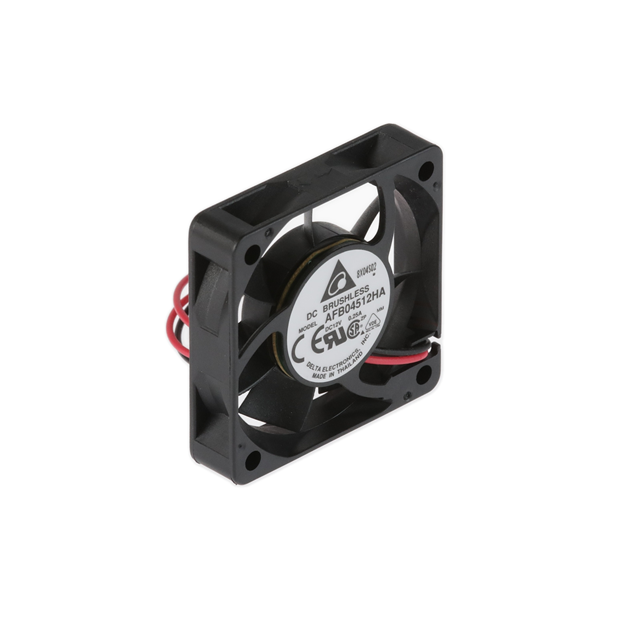

AFB04512HA
ObsoleteDelta Electronics
FAN AXIAL 45X10MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB04512HA
ObsoleteDelta Electronics
FAN AXIAL 45X10MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB04512HA |
|---|---|
| Air Flow | 0.33 mł/min |
| Air Flow | 11.8 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.17 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 34.5 dB(A) |
| RPM | 6000 RPM |
| Size / Dimension [x] | 45 mm |
| Size / Dimension [z] | 45 mm |
| Static Pressure | 46 Pa |
| Static Pressure | 0.184 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 15.88 g |
| Weight | 0.035 lb |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.52 | |
| 10 | $ 10.77 | |||
| 25 | $ 9.77 | |||
| 50 | $ 9.02 | |||
| 100 | $ 7.89 | |||
| 250 | $ 7.39 | |||
Description
General part information
AFB04512 Series
Fan Tubeaxial 12VDC Square - 45mm L x 45mm H Ball 11.8 CFM (0.330m³/min) 2 Wire Leads
