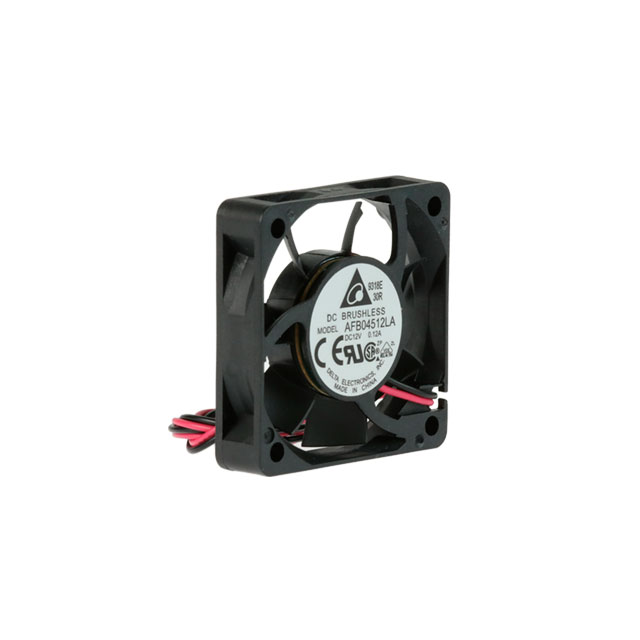

AFB04512LA

Obsolete

Delta Electronics

FAN AXIAL 45X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 45X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	RPM	Air Flow	Air Flow	Weight	Weight	Approval Agency	Noise	Material - Frame	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Width [y]	Material - Blade	Static Pressure	Static Pressure	Fan Type	Termination	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)
Delta Electronics AFB04512LA	4000 RPM	0.216 m³/min	7.7 CFM	15.88 g	0.035 lb	CE CSA UL VDE	24.5 dB(A)	Plastic	12 VDC	45 mm	45 mm	Ball	10 mm	Plastic	0.081 in H2O	20.1 Pa	Tubeaxial	2 Wire Leads	13.8 VDC	9 V
Delta Electronics AFB04512HA	6000 RPM	0.33 mł/min	11.8 CFM	15.88 g	0.035 lb	CE CSA UL VDE	34.5 dB(A)	Plastic	12 VDC	45 mm	45 mm	Ball	10 mm	Plastic	0.184 in H2O	46 Pa	Tubeaxial	2 Wire Leads	13.8 VDC	7 V	0.17 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 45mm L x 45mm H Ball 7.7 CFM (0.216m³/min) 2 Wire Leads
