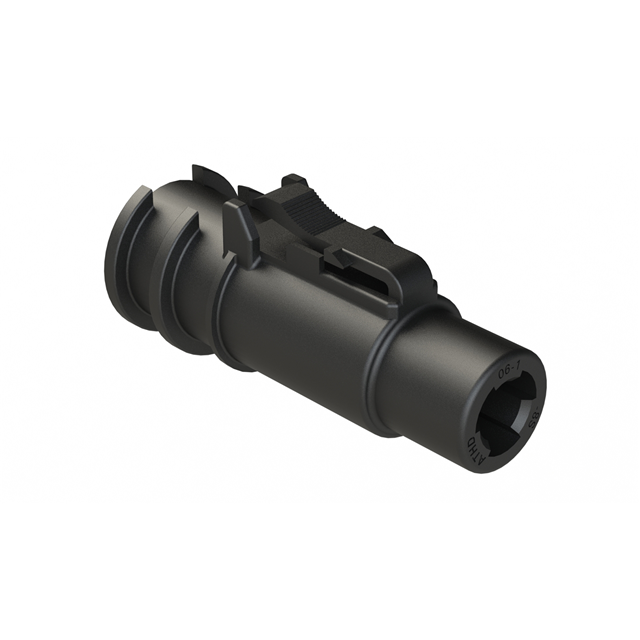

ATHD06-1-8S-OM

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 1POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 1POS INLINE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Shielding	Contact Shape	Number of Positions	Housing Color	Connector Type	Note	Mounting Type	Contact Size	Ingress Protection	Fastening Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation
Amphenol Sine Systems Corp ATHD06-1-4S	Crimp	Unshielded	Circular	1	Black	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	4 Power	IP67 IP69K	Latch Lock	For Female Sockets	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD06-1-12S	Crimp	Unshielded	Circular	1	Black	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	12 Power	IP67 IP69K	Latch Lock	For Female Sockets	-55 °C	125 °C	Thermoplastic	Keyed
Amphenol Sine Systems Corp ATHD06-1-12S-OM	Crimp	Unshielded	Circular	1	Black	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	12 Power	IP67 IP69K	Latch Lock	For Female Sockets	-55 °C	125 °C	Thermoplastic	Keyed
Amphenol Sine Systems Corp ATHD06-1-8S-OM	Crimp	Unshielded	Circular	1	Black	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	8 Power	IP67 IP69K	Latch Lock	For Female Sockets	-55 °C	125 °C	Thermoplastic	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line)
