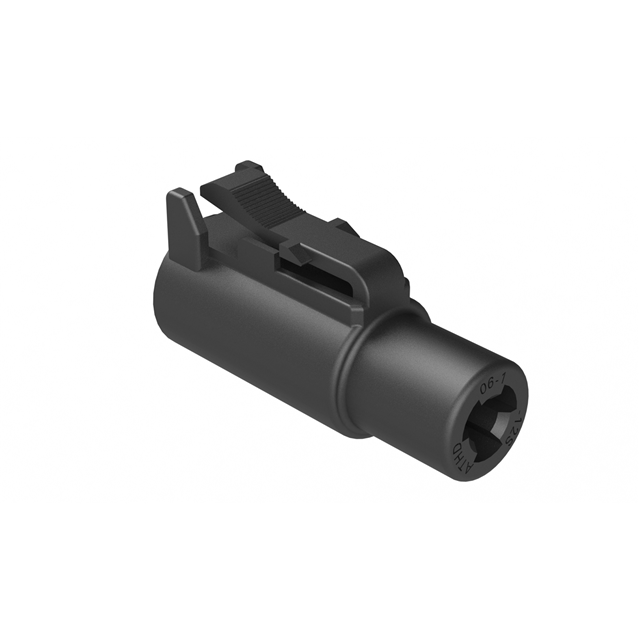

ATHD06-1-12S
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 1POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
ATHD06-1-12S
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 1POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATHD06-1-12S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12 Power |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shielding | Unshielded |
| Type | For Female Sockets |
ATHD06 Series
| Part | Contact Type | Shielding | Contact Shape | Number of Positions | Housing Color | Connector Type | Note | Mounting Type | Contact Size | Ingress Protection | Fastening Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Crimp | Unshielded | Circular | 1 | Black | Plug Housing | Contacts Not Included | Free Hanging (In-Line) | 4 Power | IP67 IP69K | Latch Lock | For Female Sockets | -55 °C | 125 °C | ||
Amphenol Sine Systems Corp | Crimp | Unshielded | Circular | 1 | Black | Plug Housing | Contacts Not Included | Free Hanging (In-Line) | 12 Power | IP67 IP69K | Latch Lock | For Female Sockets | -55 °C | 125 °C | Thermoplastic | Keyed |
Amphenol Sine Systems Corp | Crimp | Unshielded | Circular | 1 | Black | Plug Housing | Contacts Not Included | Free Hanging (In-Line) | 12 Power | IP67 IP69K | Latch Lock | For Female Sockets | -55 °C | 125 °C | Thermoplastic | Keyed |
Amphenol Sine Systems Corp | Crimp | Unshielded | Circular | 1 | Black | Plug Housing | Contacts Not Included | Free Hanging (In-Line) | 8 Power | IP67 IP69K | Latch Lock | For Female Sockets | -55 °C | 125 °C | Thermoplastic | Keyed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.20 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.55 | |||
Description
General part information
ATHD06 Series
1 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line)
