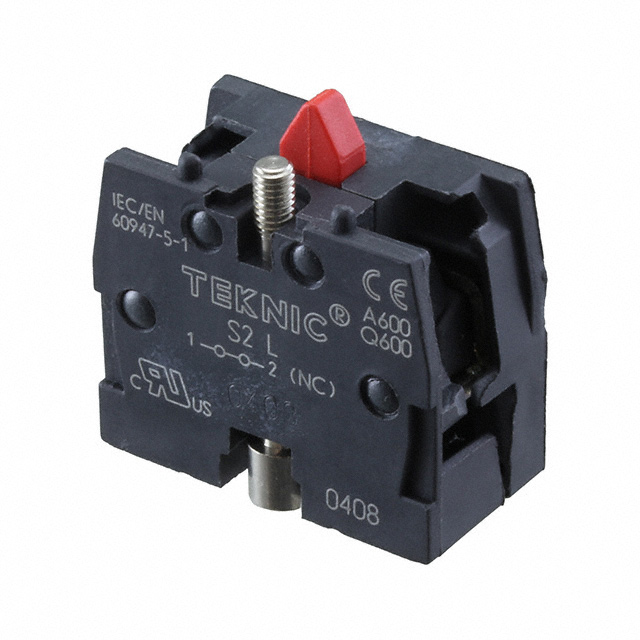

S2L

Active

Altech Corporation

CONTACT BLOCK SPST-NC 10A 600V

Search across all available documentation for this part.

Active

Altech Corporation

CONTACT BLOCK SPST-NC 10A 600V

Technical Specifications

Parameters and characteristics for this part

Specification	S2L

(Select First, Then Apply Filters) Compatible Series	22 mm
(Select First, Then Apply Filters) Compatible Series	Altech
Circuit	SPST-NC
Contact Rating @ Voltage [x]	600 VAC, 10 A
Requires	Switch Body
Termination Style	Screw Terminal

Part	Circuit	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Termination Style	Contact Rating @ Voltage [x]	Requires
TE Connectivity Raychem Cable Protection S2-02WB	SPST-NC x 2	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2-02WB	SPST-NC x 2	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
TE Connectivity Raychem Cable Protection S2-01WB	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2-01WB	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2L	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NC 10A @ 600VAC
