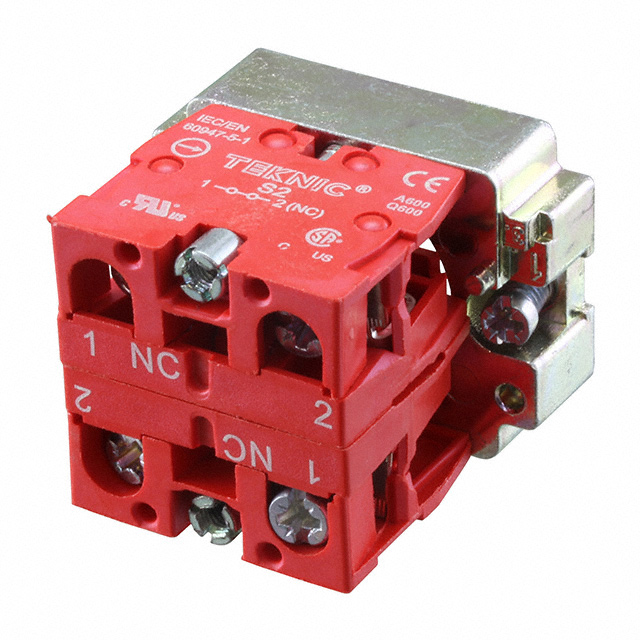

S2-02WB

Active

TE Connectivity Raychem Cable Protection

CONTACT BLOCK SPST-NCX2 10A 600V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONTACT BLOCK SPST-NCX2 10A 600V

Technical Specifications

Parameters and characteristics for this part

Specification	S2-02WB

(Select First, Then Apply Filters) Compatible Series	22 mm
(Select First, Then Apply Filters) Compatible Series	Altech
Circuit	SPST-NC x 2
Contact Rating @ Voltage [x]	600 VAC, 10 A
Requires	Switch Body
Termination Style	Screw Terminal

Part	Circuit	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Termination Style	Contact Rating @ Voltage [x]	Requires
TE Connectivity Raychem Cable Protection S2-02WB	SPST-NC x 2	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2-02WB	SPST-NC x 2	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
TE Connectivity Raychem Cable Protection S2-01WB	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2-01WB	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body
Altech Corporation S2L	SPST-NC	22 mm	Altech	Screw Terminal	10 A 600 VAC	Switch Body

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NC x 2 10A @ 600VAC

Technical documentation and resources

No documents available
