GRS-4013C-0001
ActiveCW Industries

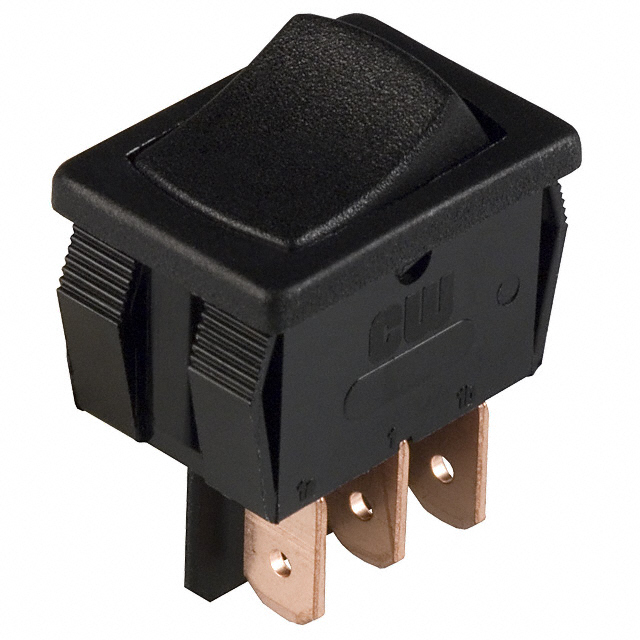

SWITCH ROCKER SPDT 8A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRS-4013C-0001
ActiveCW Industries
SWITCH ROCKER SPDT 8A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-4013C-0001 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 8 A |
| Electrical Life | 25000 Steps |
| Features | Terminal Barriers |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.85 | |
| 10 | $ 1.65 | |||
| 25 | $ 1.56 | |||
| 50 | $ 1.49 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.21 | |||
Description
General part information
GRS-4013 Series
Rocker Switch SPDT 8A (AC) 125 V Panel Mount, Snap-In
