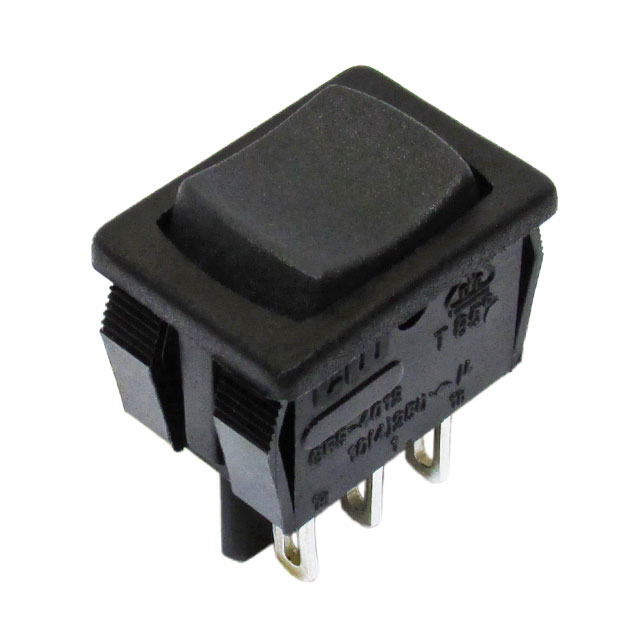

GRS-4013A-0003

Active

CW Industries

SPDT 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

GRS-4013A-0003

Active

CW Industries

SPDT 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4013A-0003

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	8 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

GRS-4013 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Circuit	Mechanical Life	Mounting Type	Actuator Type	Switch Function	Voltage Rating - AC	Electrical Life	Actuator Marking	Termination Style	Features
CW Industries GRS-4013A-0023	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4013C-0004	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	Mom-Off-Mom	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4013A-1300	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	100000 Cycles	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4013C-0000	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	Mom-Off-Mom	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers
CW Industries GRS-4013C-0001	-20 C	105 ░C	8 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	100000 Cycles	Panel Mount Snap-In	Concave (Curved)	Mom-Off-Mom	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers
CW Industries GRS-4013A-0001	-20 C	105 ░C	8 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers
CW Industries GRS-4013A-0021	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4013A-0003	-20 C	105 ░C	8 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers
CW Industries GRS-4013C-1300	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	Mom-Off-Mom	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers
CW Industries GRS-4013A-0000	-20 C	105 ░C	13 A	12.9 mm	Rectangular	19.2 mm	Black	SPDT	25000 Steps	Panel Mount Snap-In	Concave (Curved)	On-Off-On	125 V	25000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	Terminal Barriers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.78
LCSC	Piece	1	$ 1.85
		200	$ 0.74
		500	$ 0.71

Description

General part information

GRS-4013 Series

Rocker Switch SPDT 8A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
