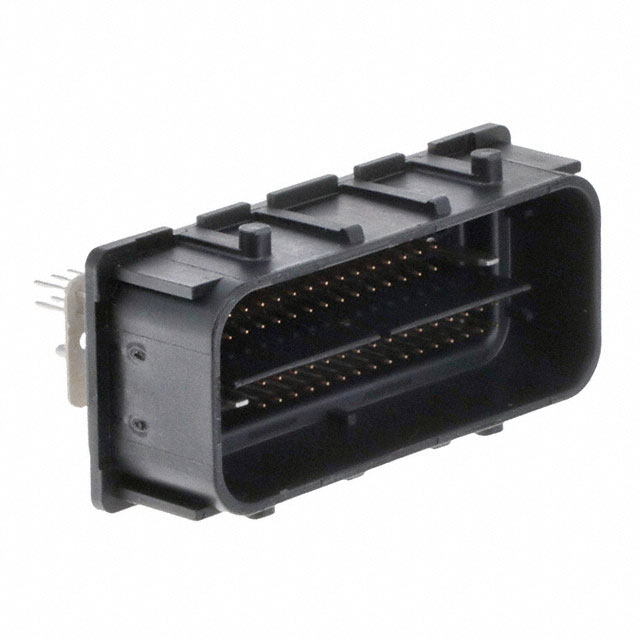

0313878001
ActiveMolex
CONN SHROUDED HEADER (4 SIDES) HDR 66 POS 2.54MM SOLDER ST THRU-HOLE CARTON
Deep-Dive with AI
Search across all available documentation for this part.
0313878001
ActiveMolex
CONN SHROUDED HEADER (4 SIDES) HDR 66 POS 2.54MM SOLDER ST THRU-HOLE CARTON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0313878001 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 6.5 mm |
| Contact Length - Post [x] | 0.256 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 21.54 mm |
| Insulation Height | 0.848 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 66 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.44 | |
| 10 | $ 16.20 | |||
| 280 | $ 12.96 | |||
Description
General part information
031387 Series
Connector Header Through Hole 66 position 0.100" (2.54mm)
