0313878003

Active

Molex

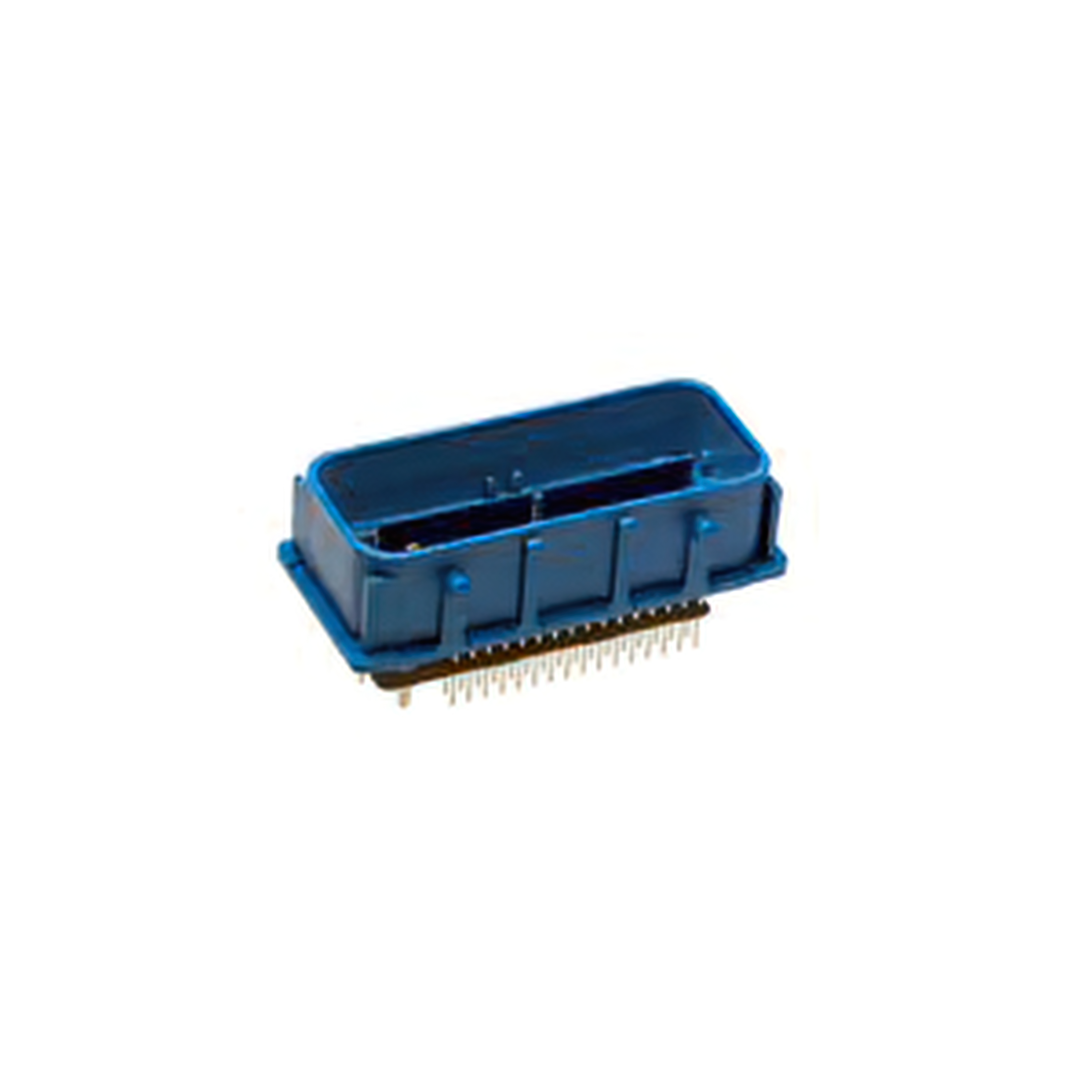

CONN HEADER VERT 66POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HEADER VERT 66POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	0313878003

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	6.5 mm
Contact Length - Post [x]	0.256 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Blue
Insulation Height	21.54 mm
Insulation Height	0.848 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	66
Number of Positions Loaded	All
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Mounting Type	Contact Shape	Fastening Type	Connector Type	Style
Molex 0313878003	66	All	Solder	21.54 mm	0.848 in	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	Male Pin	6.5 mm	0.256 in	200 µin	5.08 µm	Tin	Blue	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Automotive	Through Hole	Square	Push-Pull	Header	Board to Cable/Wire
Molex 0313874009	80	All	Solder	21.54 mm	0.848 in	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	Male Pin	6.5 mm	0.256 in				Gray	Polybutylene Terephthalate (PBT) Glass Filled			Automotive	Through Hole	Square	Push-Pull	Header	Board to Cable/Wire
Molex 0313878001	66	All	Solder	21.54 mm	0.848 in	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	Male Pin	6.5 mm	0.256 in	200 µin	5.08 µm	Tin	Black	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Automotive	Through Hole	Square	Push-Pull	Header	Board to Cable/Wire
Molex 0313878004	66	All	Solder	21.54 mm	0.848 in	Silver	Shrouded - 4 Wall	0.1 in	2.54 mm	Male Pin	6.5 mm	0.256 in	200 µin	5.08 µm	Tin	Black	Polybutylene Terephthalate (PBT) Glass Filled	74.8 µin	1.9 µm	Automotive	Through Hole	Square	Push-Pull	Header	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	280	$ 15.35

General part information

Connector Header Through Hole 66 position 0.100" (2.54mm)
