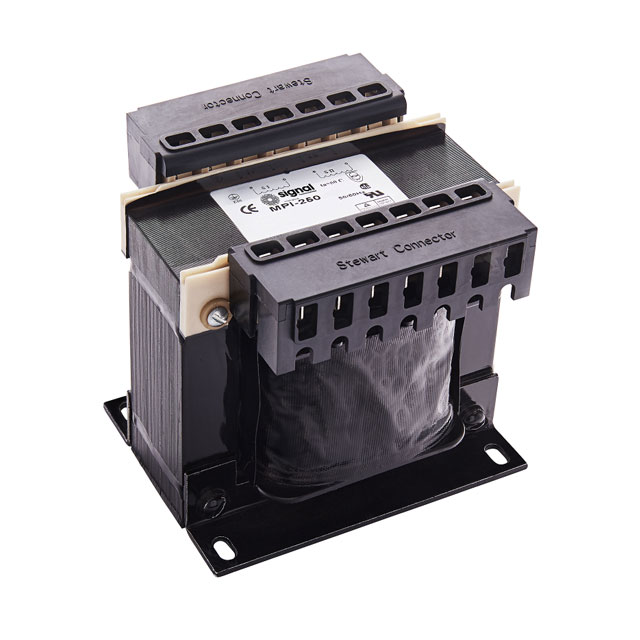

MPI-250-10

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Specification	MPI-250-10

Center Tap	False
Current - Output (Max)	25 A, 50 A
Height - Seated (Max) [Max] [z]	98.2 mm
Mounting Type	Chassis Mount
Power - Max [Max]	250 VA
Primary Winding(s)	Multiple Taps, Dual
Secondary Winding(s)	Dual
Size / Dimension [x]	104.8 mm
Size / Dimension [y]	104.9 mm
Termination Style	Terminal Block
Type	Laminated Core
Voltage - Isolation	4000 Vrms
Voltage - Primary	230 V, 100 V, 215 V, 200 V, 115 V
Voltage - Secondary (Full Load) [custom]	5 V
Voltage - Secondary (Full Load) [custom]	10 V
Weight	3.1 kg
Weight	6.8 lbs

Power Transformers 50\60 Hz, Laminated Transformer

Part	Voltage - Isolation	Termination Style	Height - Seated (Max) [Max] [z]	Type	Current - Output (Max)	Center Tap	Mounting Type	Power - Max [Max]	Primary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Primary	Weight	Weight	Secondary Winding(s)	Voltage - Secondary (Full Load)
Signal Transformer MPI-250-10	4000 Vrms	Terminal Block	98.2 mm	Laminated Core	25 A 50 A		Chassis Mount	250 VA	Dual Multiple Taps	104.8 mm	104.9 mm	5 V	10 V	100 V 115 V 200 V 215 V 230 V	3.1 kg	6.8 lbs	Dual
Signal Transformer MPI-400-40	4000 Vrms	Terminal Block	98.2 mm	Laminated Core	10 A 20 A		Chassis Mount		Dual Multiple Taps	104.8 mm	128.1 mm			100 V 115 V 200 V 215 V 230 V	4.5 kg	9.9 lbs	Dual	20 V 40 V
