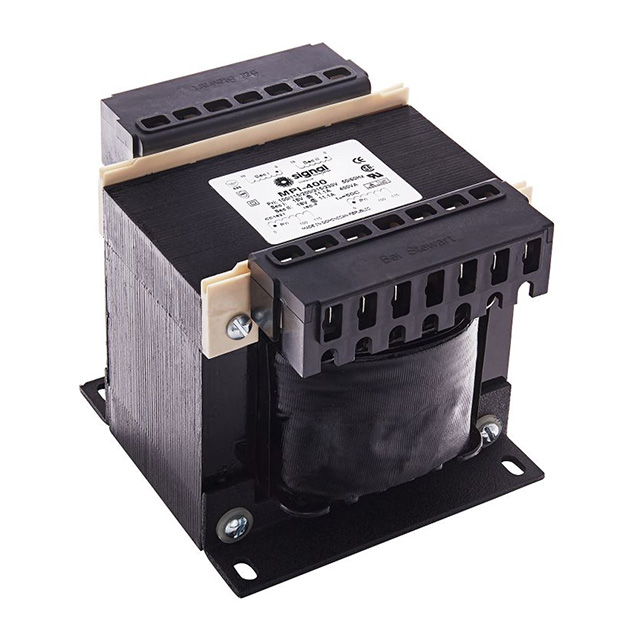

MPI-400-40

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Power Transformers 50\60 Hz, Laminated Transformer

Part	Voltage - Isolation	Termination Style	Height - Seated (Max) [Max] [z]	Type	Current - Output (Max)	Center Tap	Mounting Type	Power - Max [Max]	Primary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Primary	Weight	Weight	Secondary Winding(s)	Voltage - Secondary (Full Load)
Signal Transformer MPI-250-10	4000 Vrms	Terminal Block	98.2 mm	Laminated Core	25 A 50 A		Chassis Mount	250 VA	Dual Multiple Taps	104.8 mm	104.9 mm	5 V	10 V	100 V 115 V 200 V 215 V 230 V	3.1 kg	6.8 lbs	Dual
Signal Transformer MPI-400-40	4000 Vrms	Terminal Block	98.2 mm	Laminated Core	10 A 20 A		Chassis Mount		Dual Multiple Taps	104.8 mm	128.1 mm			100 V 115 V 200 V 215 V 230 V	4.5 kg	9.9 lbs	Dual	20 V 40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Transformers 50\60 Hz, Laminated Transformer

Technical documentation and resources
