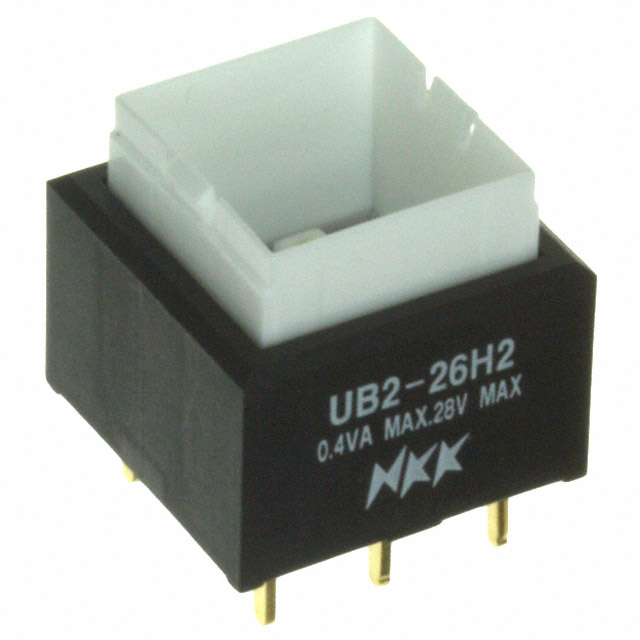

UB226SKG036B

Active

NKK Switches

PUSHBUTTON SWITCHES SWITCH PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB226SKG036B

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB226SK Series

Part	Mounting Type	Illumination Type, Color	Features	Illumination Voltage (Nominal)	Electrical Life	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Type
NKK Switches UB226SKG035D-3JD	Through Hole	Amber LED	Sealed - Fully	2 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW03N	Through Hole		Sealed - Fully Stackable		10000 Cycles	30 V	PC Pin	5 A	On-On	70 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V		Plunger for Cap	Standard
NKK Switches UB226SKG035F	Through Hole	Green LED	Sealed - Fully	2.1 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V		Plunger for Cap	Illuminated Standard
NKK Switches UB226SKG035F-1JB	Through Hole	Green LED	Sealed - Fully	2.1 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW036DG-5JDG13	Through Hole			2 VDC 2.8 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	START/STOP (Alternating)	125 V	Clear	Alternating Legend Button Square	Illuminated Standard
NKK Switches UB226SKW03N-5A	Through Hole		Sealed - Fully Stackable		10000 Cycles	30 V	PC Pin	5 A	On-On	70 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Black	Button Square	Standard
NKK Switches UB226SKG036B	Through Hole	LED White	Sealed - Fully	3.3 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V		Plunger for Cap	Illuminated Standard
NKK Switches UB226SKW036CF-4JCF14	Through Hole	Green/Red LED		2.1 VDC 3.5 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	OPEN/CLOSE (Alternating)	125 V	Clear	Alternating Legend Button Square	Illuminated Standard
NKK Switches UB226SKW035CF-3JB	Through Hole	Green/Red LED	Sealed - Fully	2.1 VDC 3.5 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW036G-1JB	Through Hole	Blue LED	Sealed - Fully	2.9 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Clear	Button Square	Illuminated Standard
