UB226SKW036CF-4JCF14

Active

NKK Switches

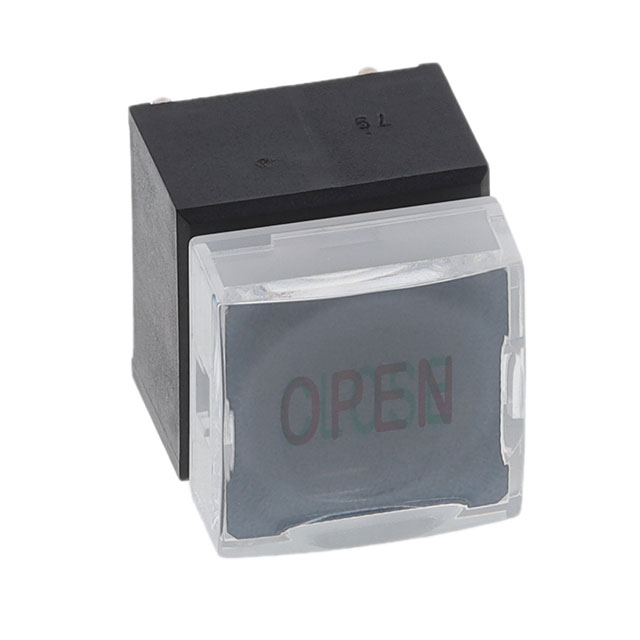

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUB2 Indicators Datasheet

UB226SKW036CF-4JCF14

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsUB2 Indicators Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB226SKW036CF-4JCF14

Actuator Marking	OPEN/CLOSE (Alternating)
Actuator Type	Button, Alternating Legend, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.1 VDC, 3.5 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB226SK Series

Part	Mounting Type	Illumination Type, Color	Features	Illumination Voltage (Nominal)	Electrical Life	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Type
NKK Switches UB226SKG035D-3JD	Through Hole	Amber LED	Sealed - Fully	2 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW03N	Through Hole		Sealed - Fully Stackable		10000 Cycles	30 V	PC Pin	5 A	On-On	70 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V		Plunger for Cap	Standard
NKK Switches UB226SKG035F	Through Hole	Green LED	Sealed - Fully	2.1 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V		Plunger for Cap	Illuminated Standard
NKK Switches UB226SKG035F-1JB	Through Hole	Green LED	Sealed - Fully	2.1 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW036DG-5JDG13	Through Hole			2 VDC 2.8 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	START/STOP (Alternating)	125 V	Clear	Alternating Legend Button Square	Illuminated Standard
NKK Switches UB226SKW03N-5A	Through Hole		Sealed - Fully Stackable		10000 Cycles	30 V	PC Pin	5 A	On-On	70 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Black	Button Square	Standard
NKK Switches UB226SKG036B	Through Hole	LED White	Sealed - Fully	3.3 VDC	200000 Cycles	28 V	PC Pin	0.4 VA	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	28 V		Plunger for Cap	Illuminated Standard
NKK Switches UB226SKW036CF-4JCF14	Through Hole	Green/Red LED		2.1 VDC 3.5 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	OPEN/CLOSE (Alternating)	125 V	Clear	Alternating Legend Button Square	Illuminated Standard
NKK Switches UB226SKW035CF-3JB	Through Hole	Green/Red LED	Sealed - Fully	2.1 VDC 3.5 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Clear	Button Square	Illuminated Standard
NKK Switches UB226SKW036G-1JB	Through Hole	Blue LED	Sealed - Fully	2.9 VDC	10000 Cycles	30 V	PC Pin	5 A	On-On	50 °C	-25 °C	DPDT	200000 Cycles	No Marking	125 V	Clear	Button Square	Illuminated Standard
